Uninterruptible Power Supply (UPS)

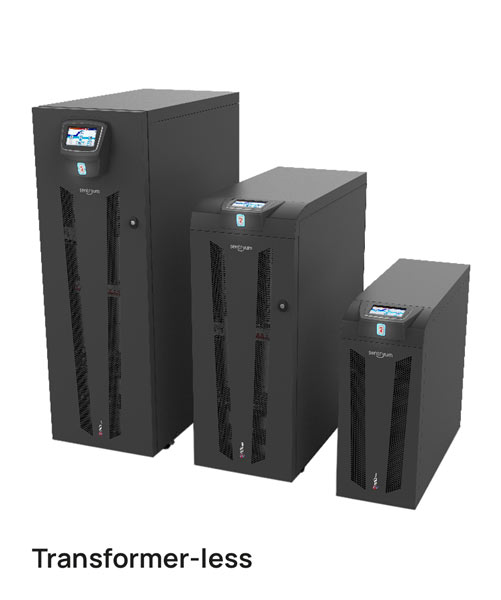

Transformer-less Monolithic (5kW to 800kW)
Floor-standing, modern transformer-less UPS systems deliver high efficiency, integral battery capability, a compact footprint, and reduced system weight compared with traditional transformer-based technology.
- Online AC-AC Efficiency up to 97.1%
- Connect up to 6 units in parallel for redundancy or additional capacity
- Integral battery capability up to 80kW
- 1/1 & 3/1 Phase Configurations available up to 30kW
Transformer-based Monolithic (10kW to 800kW)
Traditional transformer-based UPS solutions using modern IGBT technology are designed for more industrial environments and applications.
- Galvanic Isolation through the inverter enabling Dual Input Supplies from different sources.
- UGS & PSJ options for Synchronisationand Dual Bus arrangements
- ‘Back to wall’ installation with front only access for maintenance
Scalable Modular Solutions (10kW to 6400kW)
Comprehensive range of modular UPS solutions using 10, 15, 20, 25, 30, 50, 62 & 67kW power module ratings. Lower ratings offer internal battery capability and 1/1 & 3/1 phase configurations. Modular UPS delivers higher power density, simpler integration for existing and new installations combined with enhanced operating efficiency and flexibility that reduces both upfront investment and ongoing operational costs.
- Modular ‘hot-swappable’ solutions to provide scalability that can grow with your business
- Capable of +1 resilience within a single cabinet (avoiding the need for 2 x monolithic UPS systems)
- Connect up to 4 modular cabinets in parallel for redundancy or additional capacity (up to 6.4MW)
- Online AC-AC Efficiency up to 98.1% using latest Silicon Carbide (SiC) Power Modules
- Efficiency control ensures high efficiency even at low loads
Desktop & Rack Mounted (1kW to 10kW)
Comprehensive range of desktop or 19” comms rack mounted UPS solutions to suit all budgets. Can be supplied with integrated pre-built batteries, external matching battery extension boxes or larger floor standing battery solutions for extended autonomy requirements.
- 1U, 2U, 3U and 6U solutions available
- “plug & play” designs up to 3kVA
- Dedicated desktop & rack mounted designs as well versatile solutions enabling both
- 5 year pre-built batteries as standard, however 10 year upgrade available on request
