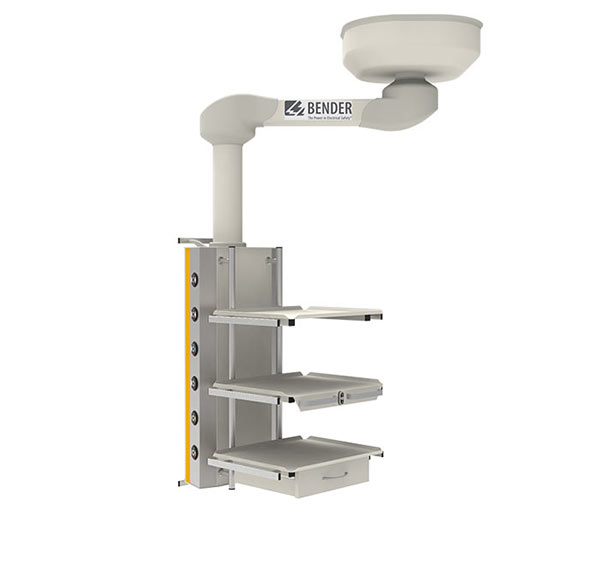

Contempo Single Arm Pendants
- Enhanced rotation
- Increased range of movement
- Improved distribution of patient services
- High quality, versatile, flexible
Single arm Class 2 B ceiling mount pendants deliver greater movement and rotation compared to a fixed pendant. They are supplied with an arm style of choice, which connects to the ceiling fixture. A range of arms are available including height-adjustable and articulating.
They are easy for clinical teams to manoeuvre and position around the patient, providing up to 330° rotation from all joints. Single arm pendants are supplied with optional arm lengths, gas, data and electrical outlets. A comprehensive range of accessories is also available.
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/c/c/csm_B_OK07_55_A-s-polici2_083e245ee8.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/8/e/csm_Single-arm-height-adjustable-OK07_55-Source-head-A-gas_56256bf814.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/4/1/csm_Single-arm-articulating-OK07_16-Source-Head-Z_fe25699f79.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/2/f/csm_Single-height-adjustable-arm-OK07_55-Source-head-L06.jpg_a4bd3ff906.png "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/6/6/csm_Single-arm-articulating-OK07_16-horizontal_a2875bc3dd.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/c/c/csm_B_OK07_55_A-s-polici2_86efd7d1fb.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/8/e/csm_Single-arm-height-adjustable-OK07_55-Source-head-A-gas_dde04becff.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/4/1/csm_Single-arm-articulating-OK07_16-Source-Head-Z_010901a000.jpg "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/2/f/csm_Single-height-adjustable-arm-OK07_55-Source-head-L06.jpg_8f8c8d3dcc.png "[Translate to English:] Single Arm Pendants")
![[Translate to English:] Single Arm Pendants](/fileadmin/_processed_/6/6/csm_Single-arm-articulating-OK07_16-horizontal_919e001a84.jpg "[Translate to English:] Single Arm Pendants")
- Enhanced rotation
- Increased range of movement
- Improved distribution of patient services
- High quality, versatile, flexible
Single arm Class 2 B ceiling mount pendants deliver greater movement and rotation compared to a fixed pendant. They are supplied with an arm style of choice, which connects to the ceiling fixture. A range of arms are available including height-adjustable and articulating.
They are easy for clinical teams to manoeuvre and position around the patient, providing up to 330° rotation from all joints. Single arm pendants are supplied with optional arm lengths, gas, data and electrical outlets. A comprehensive range of accessories is also available.
Features
- Premium grade aluminium construction
- Rotational options: Height - adjustable / Articulating
- Fitted with medical rods and rails
- Source head options: Up to 6 types available (see ordering information)
- Electrical sockets, gas and data outlets: Variations available, specify at ordering
- Blue sockets positioned at a 45° angle for wire and cable space
- A variety of arm lengths are available (refer to ordering information)
- 330° rotation from all joints
Applications
- Emergency departments
- Resus
- Operating theatres
Contempo Single Arm Pendants Variant(s)

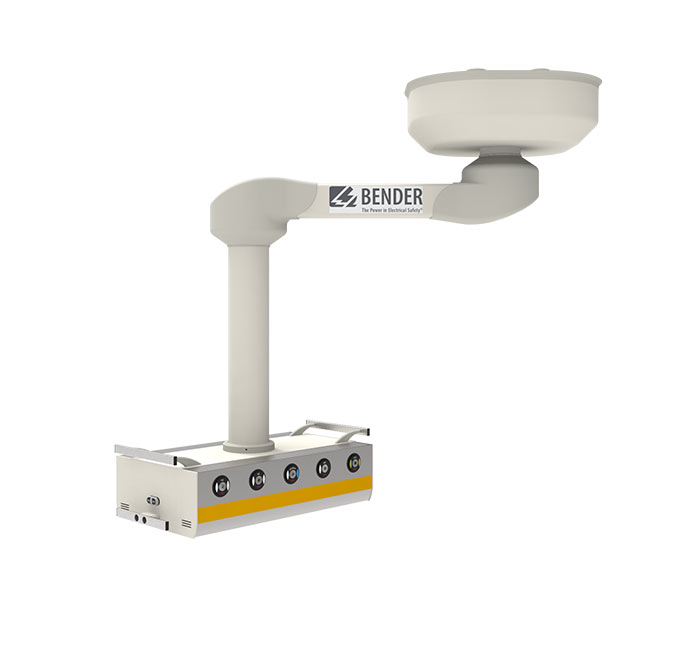

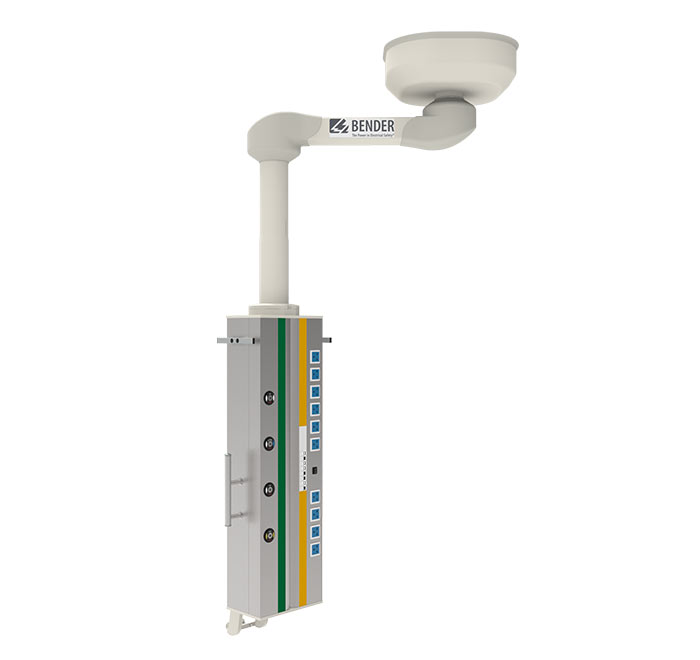

OK07-16 - Single articulating pendant
| Arm | Articulating arm |
|---|---|
| Payload | 150kg |
| Weight | - |
| Brake | pneumatic |
| Ceiling load | -Nm, -N |
| Source heads | L06, L10, L12, L15, A, Z |
| Arm length options | 450, 600, 800, 1000 mm |
| Rotation | 330° |
| Source head options | L06 | L10 | L12 | L15 | A | Z |
|---|---|---|---|---|---|---|
| Maximum electrical sockets | 6 | 12 | 15 | 20 | 8 | 15 |
| Maximum data sockets | 12 | 20 | 24 | 30 | 13 | 25 |
| Maximum gas outlets + AGSS | 5 | 8 | 10 | 12 | 5 | 10 |
| Payload (kg) | 150kg | 150kg | 135kg | 150kg | 150kg | 200kg |
| Weight (kg) | 55kg | 70kg | 60kg | 100kg | 50kg | - |
| Medical rails | 2 | 2 | 2 | 2 | 2 | 2 |
| Medical rods | 2 | 2 | 2 | 2 | - | - |

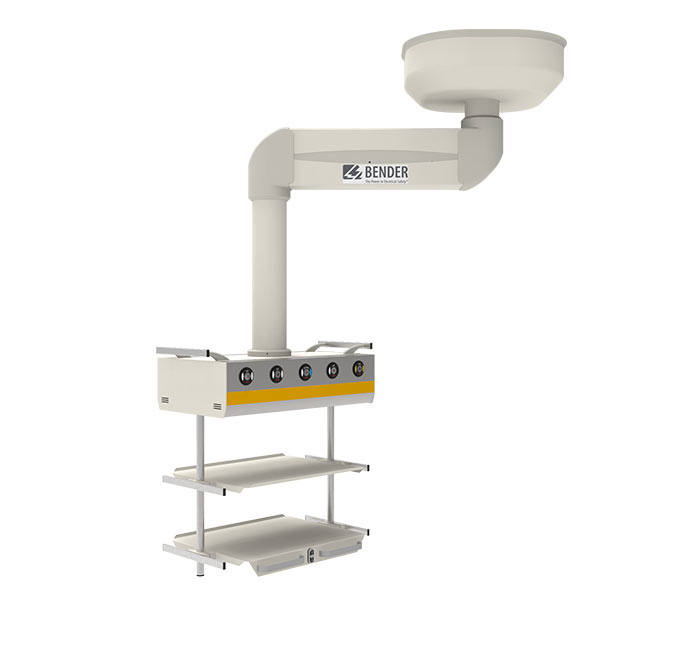

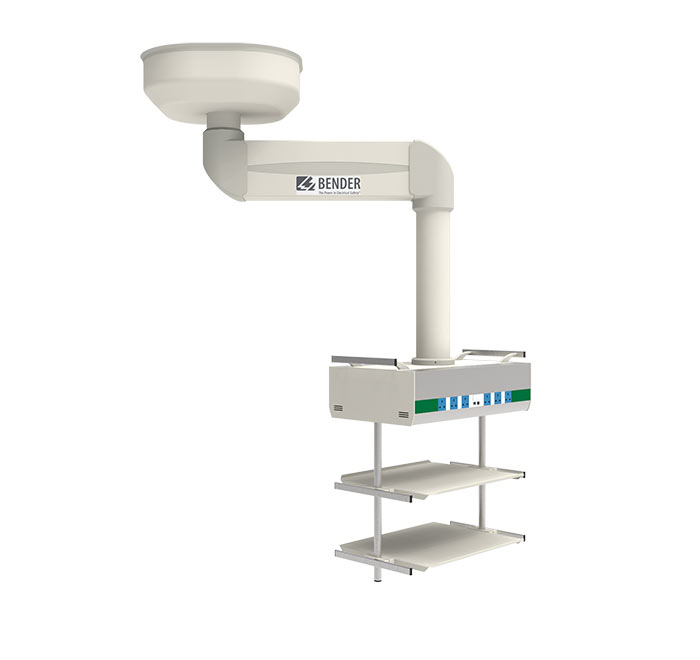

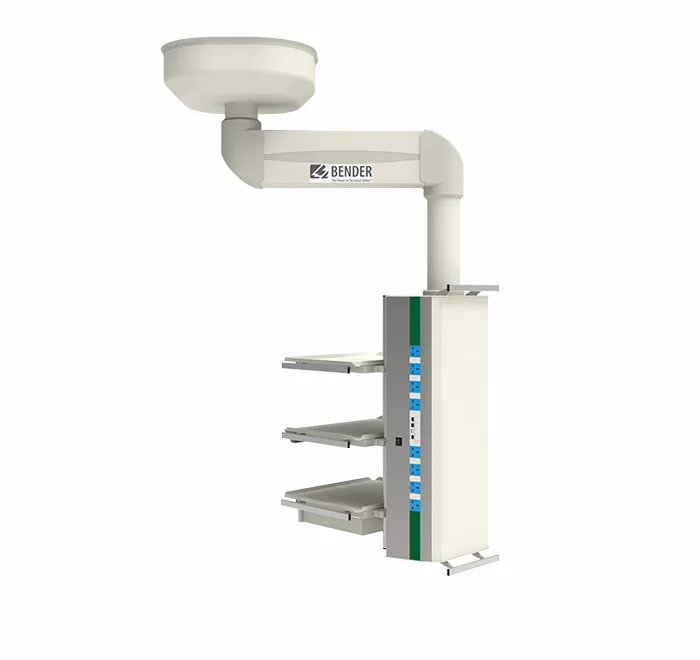

OKO7-55 - Single height adjustable pendant
| Arm | Articulating arm |
|---|---|
| Payload | 150kg |
| Weight | - |
| Brake | pneumatic |
| Ceiling load | -Nm, -N |
| Source heads | L06, L10, L12, L15, A |
| Arm length | 800 mm |
| Rotation | 330° |
| Lift | 500 mm |
| Source head options | L06 | L10 | L12 | L15 | A |
|---|---|---|---|---|---|
| Maximum electrical sockets | 6 | 12 | 15 | 20 | 8 |
| Maximum data sockets | 12 | 20 | 24 | 30 | 13 |
| Maximum gas outlets + AGSS | 5 | 8 | 10 | 12 | 5 |
| Payload (kg) | 150kg | 150kg | 135kg | 150kg | 150kg |
| Weight (kg) | 55kg | 70kg | 60kg | 100kg | 50kg |
| Medical rails | 2 | 2 | 2 | 2 | 2 |
| Medical rods | 2 | 2 | 2 | 2 | - |
Optional Accessories for Contempo Single Arm Pendants
| There is a wide range of optional accessories available: |
|---|
| Ramps |
| LED Examination Lamp |
| Shelves |
| Shelf Wire Baskets |
| Medical Rails |
| Monitor Holders |
| Refracted Arms |
| Infusion Racks |
| Infusion Stands |
| Cable Holders |
