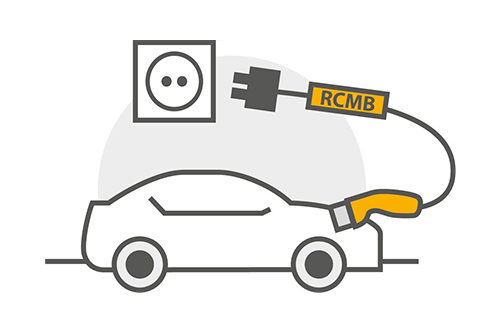

As AC charging involves charging the electric vehicle from the normal outlet at home, the charging infrastructure is simply the charging cable. This special charging cable must have an integrated monitoring system and the vehicle must have internal charging electronics. Bender offers residual current monitoring sensors for mode 2 charging cable manufacturers. These sensors can be used in IC-CPDs in accordance with IEC 62752.

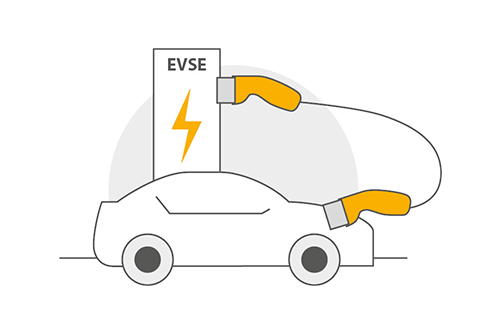

AC charging stations can often be found at home, in hotels or at the workplace, as AC charging utilises conventional low voltage. This means AC charging has the benefit that charging infrastructure required can be kept relatively simple. However, the vehicle must have charging electronics which have a weight and volume roughly in proportion to the maximum possible charging power. Whether it is a small board fitted into a mobile charger to detect any faults quickly and safely and provide information and/or switch off if there is a hazard. Or even a somewhat larger series device used in a stationary system. In both cases, Bender fulfils all current standards and the user of the charging station is on the safe side.

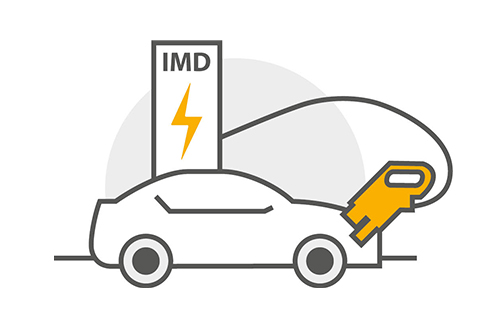

Larger charging stations and quick charging stations use DC charging. Generally, this is an unearthed system. DC charging involves passing an external DC voltage to batteries connected in series. In order for current to flow, the voltage must be governed so that it is always slightly higher than the current cell voltage of the batteries connected in series. This involves complex charging control systems as the currents can be up to several 100 A. This process charges the battery up again in around 15 minutes. This concept is ideal for recharging during a journey, at a motorway service station, for example. In order to prevent the insulation monitoring device in the vehicle and the one in the charging column influencing one another, the insulation monitoring device in the vehicle is also deactivated during the charging process. The insulation monitoring device in the charging column then monitors the entire charging current circuit. The Bender products are market leaders and offer a very high level of safety.
An expert in the field of e-mobility, Bender UK provides a range of innovative products and technical support services for electric and hybrid vehicle technology and charging infrastructure.
On-board insulation monitoring devices forewarn developing electrical faults before they become critical. These devices are proven and used in Formula 1, Formula E, Hybrid Buses and OEM applications.
For vehicle charging we provide a range of regulatory compliant components and solutions. Complete charge stations, modular kits, charge controllers and complimentary accessories are all available from Bender UK.
If you are looking to develop your own charge station but don’t have the technical knowledge, we offer our support, expertise and bespoke solutions for the needs of today’s rapidly growing e-mobility customers.
