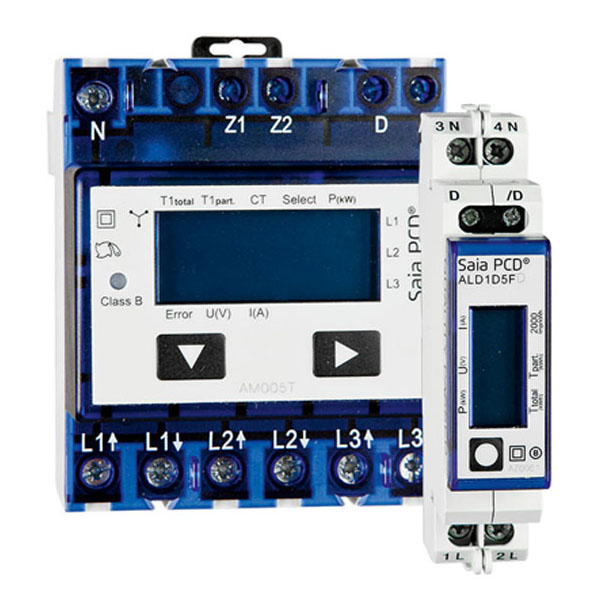

Energy meter

Energy meter

Along with numerous measuring values, all devices of the PEM series can measure energy and power values. If, however, a measuring point is used for billing purposes, special requirements are to be met (subject to obligatory calibration). For this purpose, energy meters with MID (Measurement Instrument Directive) conformity mark are suitable. Bender provides a selection of energy meters.

  • Features
  • Applications
  • Accessories
  • Ordering information
  • Downloads
  • Energy meter with Modbus RTU interface
  • MID approved
  • 7-digit display
  • Automatic recognition of bus transmission rate and parity
  • Lead seal possible with cap as accessory
  • Resettable, partial reading
  • In addition to active energy metering, measured data such as current, voltage, power and cos (phi) is also available.
  • DIN rail mounting
  • Registration of relevant energy management data
  • Suitable for billing purposes


Optional accessories for Energy meter

DescriptionArt. No.
Sealable cover for ALD1 (two per counter)B93101009
Sealable cover for ALE3/AWD3 (four per counter)B93101010

Variants of Energy meter

TypeDescriptionArt. No.
ALD1Energy meter 1Ph/32 A MID Modbus RTUB93101005
ALE3Energy meter 3Ph/65 A MID Modbus RTUB93101006
AWD3Energy meter 3Ph/6 A MID Modbus RTUB93101007
PCD7S0 pulse counter (four-fold) with Modbus RTUB93101008
