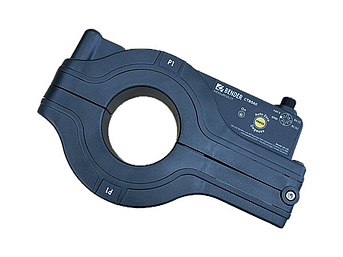

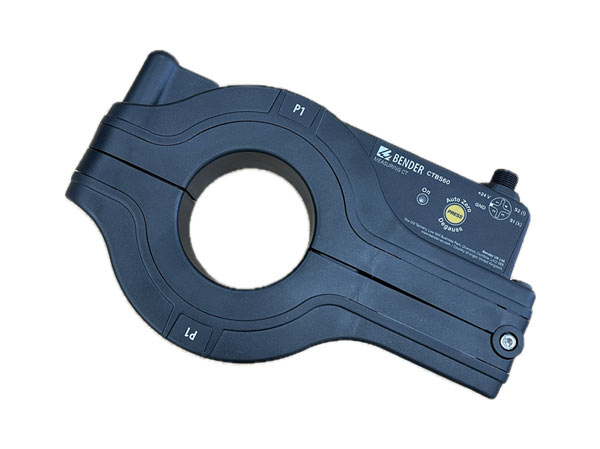

LINETRAXX® CTBS60
The AC/DC sensitive CTBS60 (type B) measuring current transformers converts system leakage and fault currents into evaluable measurement signals. The devices are suitable for detecting fault currents with smooth DC components. The measuring current transformers can be used in DC, AC, and 3(N)AC systems. The measurement signal is evaluated using devices of the EDS440WNR series, to which the measuring current transformers are connected.
The AC/DC sensitive CTBS60 (type B) measuring current transformers converts system leakage and fault currents into evaluable measurement signals. The devices are suitable for detecting fault currents with smooth DC components. The measuring current transformers can be used in DC, AC, and 3(N)AC systems. The measurement signal is evaluated using devices of the EDS440WNR series, to which the measuring current transformers are connected.
Features
- Split-core measuring current transformer for easy retrofitting without disconnecting the primary conductors
- Suitable for AC/DC sensitive type B monitoring
- Can be combined with EDS440WNR insulation fault locators
- Supply voltage DC 24 V
Applications
- for insulation fault locators (EDS)
LINETRAXX® CTBS60 Variant(s)
| Type | Supply voltage US | Art. No. |
|---|---|---|
| CTBS60 | DC 24 V | B98120062 |
