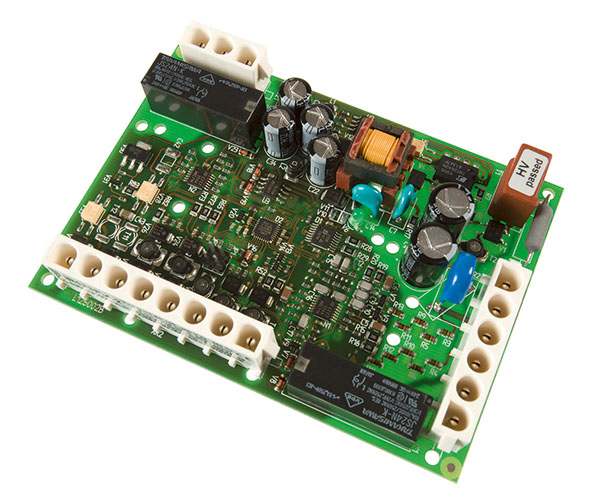

ISOMETER® IR123P
- Insulation monitoring device for mobile generators
- Protective separation with insulation monitoring and disconnection
- According to IEC 60364-5-55 and IEC 61557-8
- Optocoupler output for signalling the device status
- Galvanically separated PWM output for the measuring value
The ISOMETER® IR123P monitors the insulation resistance RF of an unearthed AC system of 100...300 V against earth, that is supplied by a mobile generator according to DIN VDE 0100-551. The IR123 is suitable for AC systems with operating frequencies of 22...65 Hz as well as for AC systems including DC components. The maximum permissible system leakage capacitance Cemax is 5 μF.
- Insulation monitoring device for mobile generators
- Protective separation with insulation monitoring and disconnection
- According to IEC 60364-5-55 and IEC 61557-8
- Optocoupler output for signalling the device status
- Galvanically separated PWM output for the measuring value
The ISOMETER® IR123P monitors the insulation resistance RF of an unearthed AC system of 100...300 V against earth, that is supplied by a mobile generator according to DIN VDE 0100-551. The IR123 is suitable for AC systems with operating frequencies of 22...65 Hz as well as for AC systems including DC components. The maximum permissible system leakage capacitance Cemax is 5 μF.
Features
- Insulation monitoring for unearthed AC systems (IT systems) 100…300 V
- Automatic adaptation to the existing system leakage capacitance
- Optimised measurement technique for low-frequency control processes
- Electrically isolated PWM output for the kΩ measuring value
- Optocoupler output for signalling the device status
- Automatic device self test
- Certonal coating
- Permanently set response value for the insulation resistance 23/46 kΩ
- Second response range 40/80 kΩ selectable via a jumper
Applications
- Monitoring of unearthed AC systems (IT systems) in mobile generators
ISOMETER® IR123P Variant(s)
| Type | Nominal system voltage* Un | Supply voltage* US | Art. No. |
|---|---|---|---|
| IR123P-4-2 | AC 22…460 Hz, 100…300 V | US = Un | B91016308 |
* Absolute values
