  • Complete system overview
  • Parameter setting for all Bender devices
  • All Bender communication interfaces
  • Displayed in the web browser, local software installation therefore not required
  • Adaptable to individual requirements by means of function modules

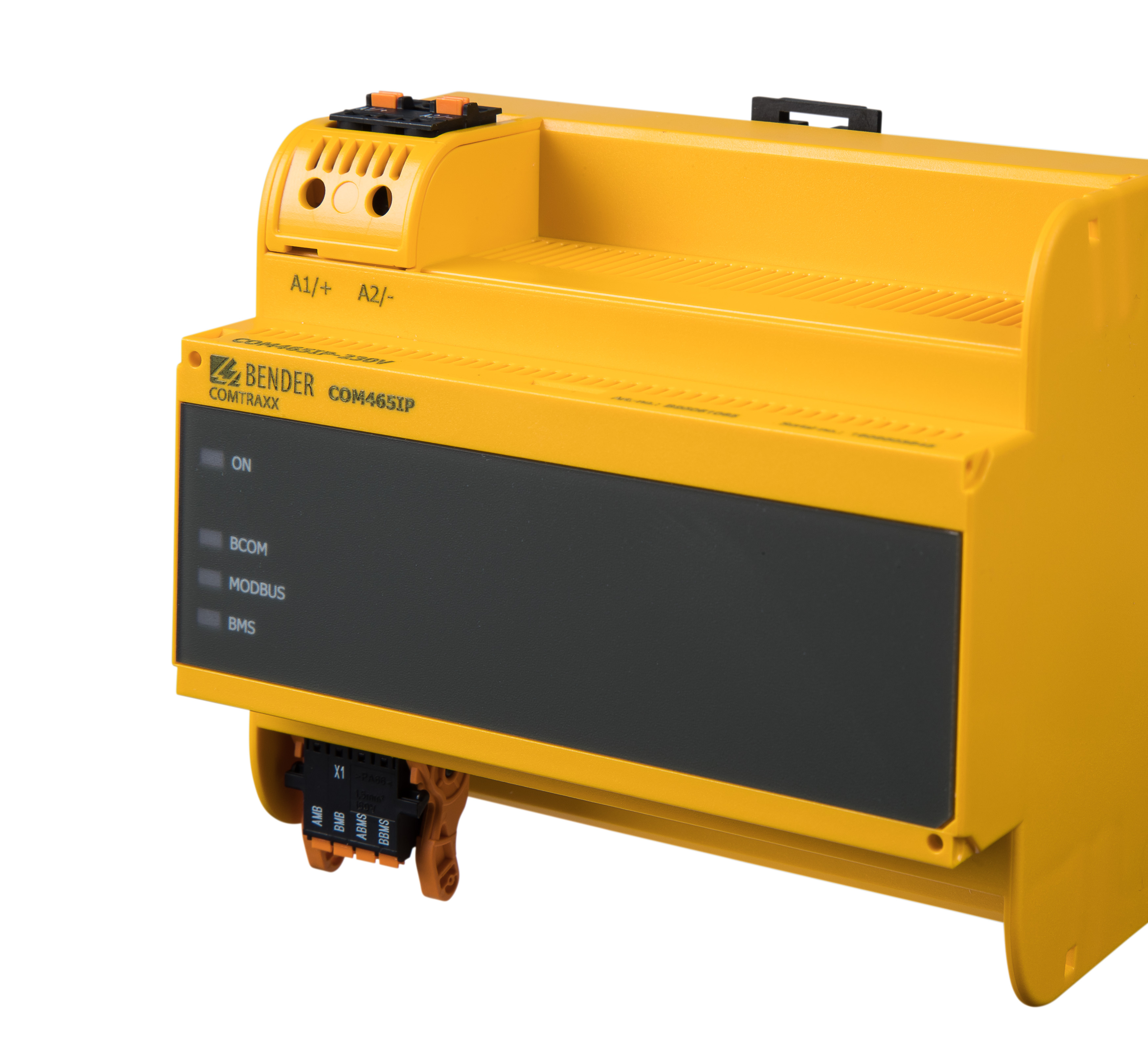

The COM465IP is a Condition Monitor with an integrated gateway. The intuitive COMTRAXX user interface provides a perfect system overview and allows simple and intuitive parameterisation of all connected devices. The user interface is based on HTML5 and is therefore future-proof and provides barrier-free access. The COM465IP transmits data of all devices in the system via Modbus TCP and SNMP. This allows requests of all Bender devices with communication capability, such as EDS, RCMS, MEDICS or PEM systems, to be integrated into a Modbus TCP or SNMP system.  It provides several interfaces and can therefore integrate all Bender devices and also third-party devices into the system.

Existing interfaces:

  • RS-485: BMS, Modbus RTU
  • Ethernet: BCOM, Modbus TCP, SNMP

In addition, the functionality can be extended by function modules. This makes it possible to adapt the device to the respective requirements.

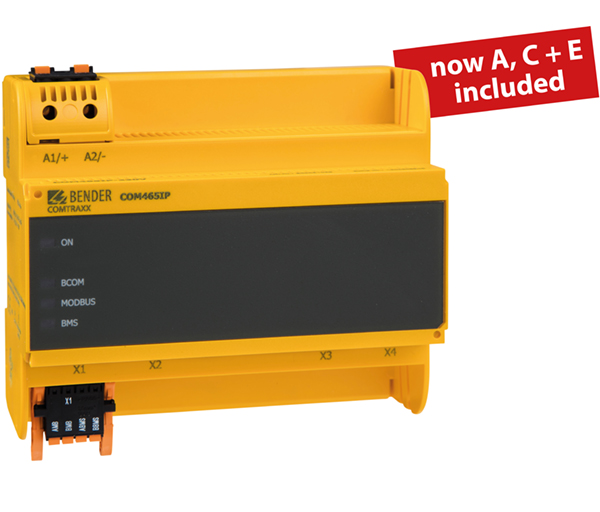

Now function modules A, C and E as standard for free. More information.

  • Features
  • Applications
  • Ordering information
  • Downloads
  • Condition Monitor for Bender systems
  • Integrated modular gateway between Bender systems and TCP/IP enables remote access via LAN, WAN or the Internet
  • Range of functions adjustable through function modules
  • Ethernet (10/100 Mbit/s) for remote access via LAN, WAN or the Internet
  • Support of devices connected to the internal or external BMS bus via BCOM, Modbus RTU or Modbus TCP
  • Remote display of the latest measured values, status/alarm messages and parameters
  • Gateway to Modbus TCP: Reading the latest measured values, status/alarm messages from addresses 1…10 of each interface via Modbus TCP
  • Ethernet interface with 10/100 MBit/s for remote access via LAN, WAN or Internet
  • Setting for internal parameters and for configuration of Bender universal measuring devices and energy meters
  • Time synchronisation for all assigned devices
  • History memory (20,000 entries)
  • Data loggers, freely configurable (30 ∗ 10,000 entries)
  • 50 data points from third-party devices (via Modbus RTU or Modbus TCP) can be integrated into the system
  • A virtual device with 16 channels can be created No reports can be generated - not even for your own device.


Variants of COMTRAXX® COM465IP

TypeSupply voltage/
frequency range US
Power consumptionApplicationArt. No.
COM465IP-230VAC/DC 24…240 V,
50…60 Hz
≤ 6,5 VA/≤ 4 WCondition Monitor with integrated gateway:
Bender system/Ethernet

Function package (software license)
PackageArt. No.
Function package A:
Individual text messages for all devices/channels, device failure monitoring, e-mail in the event of an alarm
Function package B:
Modbus TCP server for max. 98 * 139 BMS nodes as well as BCOM and universal measuring devices, SNMP server
Function package C:
Parameter setting of BMS devices as well as BCOM and universal measuring devices
Function package D:
Visualisation of Bender systems, System visualisation
Function module E:
Virtual devices
Function module F:
Integration of third-party devices
