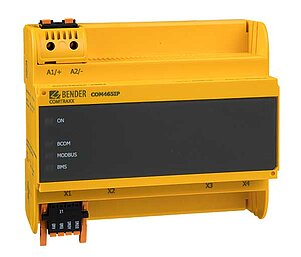

COMTRAXX® COM465IP

  • Complete system overview
  • Parameter setting for all Bender devices
  • All Bender communication interfaces
  • Displayed in the web browser, local software installation therefore not required
  • Adaptable to individual requirements by means of function modules

The COM465IP is a Condition Monitor with an integrated gateway. The intuitive COMTRAXX user interface provides a perfect system overview and allows simple and intuitive parameterisation of all connected devices. The user interface is based on HTML5 and is therefore future-proof and provides barrier-free access.

The COM465IP transmits data of all devices in the system via  Modbus TCP, Modbus RTU, SNMP and PROFINET. This allows requests of all Bender devices with communication capability, such as EDS, RCMS, MEDICS or PEM systems, to be integrated into the protocols mentioned.  It provides several interfaces and can therefore integrate all Bender devices and also third-party devices into the system.

Existing interfaces:

  • RS-485: BMS, Modbus RTU
  • Ethernet: BCOM, Modbus TCP, SNMP, PROFINET

In addition, the functionality can be extended by function modules. This makes it possible to adapt the device to the respective requirements.

Questions? Contact us!

[Translate to English:] COMTRAXX® COM465IP
  • Complete system overview
  • Parameter setting for all Bender devices
  • All Bender communication interfaces
  • Displayed in the web browser, local software installation therefore not required
  • Adaptable to individual requirements by means of function modules

The COM465IP is a Condition Monitor with an integrated gateway. The intuitive COMTRAXX user interface provides a perfect system overview and allows simple and intuitive parameterisation of all connected devices. The user interface is based on HTML5 and is therefore future-proof and provides barrier-free access.

The COM465IP transmits data of all devices in the system via  Modbus TCP, Modbus RTU, SNMP and PROFINET. This allows requests of all Bender devices with communication capability, such as EDS, RCMS, MEDICS or PEM systems, to be integrated into the protocols mentioned.  It provides several interfaces and can therefore integrate all Bender devices and also third-party devices into the system.

Existing interfaces:

  • RS-485: BMS, Modbus RTU
  • Ethernet: BCOM, Modbus TCP, SNMP, PROFINET

In addition, the functionality can be extended by function modules. This makes it possible to adapt the device to the respective requirements.

Questions? Contact us!

Features

  • Condition monitor for Bender systems
  • Integrated modular gateway between Bender systems and TCP/IP enables remote access via LAN, WAN
    or Internet
  • Range of functions adjustable through function modules
  • Ethernet (10/100 MBit/s) for remote access via LAN, WAN or Internet
  • Support of devices that are connected to the internal or external BMS bus, via BCOM, via Modbus RTU
    or Modbus TCP
  • Individual visualisation can be generated, which is displayed via the web browser

Applications

  • Remote display of the latest measured values, status/alarm messages and parameters*
  • Gateway to Modbus TCP: Reading the latest measured values, status/alarm messages from addresses 1…10 of each interface via Modbus TCP
  • Gateway to Modbus RTU: Reading the latest measured values, status/alarm messages from addresses 1…10 of the internal BMS interface via Modbus RTU
  • Ethernet interface with 10/100 MBit/s for remote access via LAN, WAN or Internet
  • Setting of internal device parameters and parameters of devices connected via Modbus RTU and Modbus TCP **
  • Time synchronisation for all assigned devices
  • History memory (20,000 entries)
  • Data loggers, freely configurable (30 x 10,000 entries)
  • 50 data points from third-party devices (via Modbus RTU or Modbus TCP) can be integrated into the system
  • A virtual device with 16 channels can be created

*) Indicating parameters of BMS bus devices is only possible when the gateway is connected to the internal BMS bus.

**) Parameters can be set via web application and externally (via BMS/ICOM/BCOM), but not via Modbus. The parameters of assigned devices can only be read; Function module C is necessary for modification of settings!

COMTRAXX® COM465IP Variant(s)

TypeSupply voltage/
frequency range US
Power consumptionApplicationArt. No.
COM465IPAC/DC 24…240 V,
50…60 Hz
≤ 6,5 VA/≤ 4 WCondition Monitor with integrated gateway:
Bender system/Ethernet
B95061065

Function modules (software license)

PackageApplicationArt. No.
Function module AIndividual text messages for all devices/
channels, device failure monitoring, e-mail in the
event of an alarm, device documentation
B75061011
Function module BProvision of data via via Modbus TCP, Modbus RTU,
SNMP and PROFINET
B75061012
Function module CParameter setting of all integrated devices,
device backups
B75061013
Function module DVisualisation applicationB75061014
Function module EVirtual devicesB75061015
Function module FIntegration of third-party devicesB75061016

Downloads for COMTRAXX® COM465IP

NameCategorySizeLanguageTimestampD-/B-Number
COM465IP/COM465DP Datasheets 6.4 MB EN2024/05/0808.05.2024D00216
COM465IP/COM465DP Datasheets 6.4 MB DE2024/05/0808.05.2024D00216
COM46x CE Declarations of conformity 87.3 KB 2022/08/1212.08.2022
COM465IP/COM465DP Manuals 10.3 MB DE2024/04/0202.04.2024D00217
COM465IP/COM465DP Manuals 10.3 MB EN2024/04/0202.04.2024D00217
COM465IP/COM465DP Quickstarts 770.0 KB DE2023/10/1111.10.2023D00216
COM465IP/COM465DP Quickstarts 770.0 KB EN2023/10/1111.10.2023D00216
BCOM Manuals 1.2 MB DE2019/05/1313.05.2019D00256
BCOM Manuals 1.2 MB EN2019/05/1313.05.2019D00256
COM465IP Datasheets 1,009.1 KB ES2019/05/1313.05.2019D00217
CP9xx, CP9…-I, CP700, COM465xx - SNMP MIB-Dateien Software 7.6 KB 2021/11/2626.11.2021D00005
COM465IP Update V4.0.2 Software 37.4 MB 2020/03/2626.03.2020D00217
COM465IP Datasheets 1.0 MB FR2022/06/0909.06.2022D00217
COMTRAXX Update 4.0.2 Product Change Notification 477.3 KB DE2020/05/2828.05.2020
COMTRAXX Update 4.0.2 Product Change Notification 473.0 KB EN2020/05/2828.05.2020
GSDML V2.42 Bender COM465XX Software 6.7 KB 2022/06/0707.06.2022
COM465IP Update V4.9.5 Software 35.2 MB 2024/05/2828.05.2024D00217
