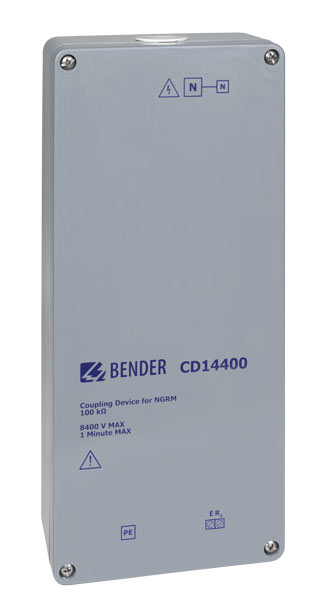

CD14400

CD14400

The CD14400 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 14.4 kV (UNGR = 8.4 kV).

The maximum operating altitude is 5000 m above mean sea level.

Features

  • Coupling device for NGRM
  • Range of use up to 14400 V system voltage
  • Application up to 5000 m
  • IP54

Applications

  • The coupling device is suitable for HRG applications up to a system voltage of 14400 V.

Downloads for CD14400

CategoryNameSizeLanguageTimestampD-/B-Number
CE Declarations of conformity CDx 76.0 KB 2022/08/12 06:17:2212.08.2022 06:17:22
Manuals CD14400 404.2 KB DE2022/12/02 11:07:2302.12.2022 11:07:23D00346
Manuals CD14400 372.6 KB EN2022/12/02 11:07:4902.12.2022 11:07:49D00346
Datasheets CD14400 323.8 KB DE2020/03/19 06:25:3419.03.2020 06:25:34D00346
Datasheets CD14400 321.8 KB EN2020/03/19 06:25:4419.03.2020 06:25:44D00346
Datasheets CD14400 322.9 KB FR2020/03/18 12:30:5518.03.2020 12:30:55D00346
Datasheets CD14400 301.8 KB ES2020/04/27 05:17:0427.04.2020 05:17:04D00346

CD14400 Variants

TypeNominal system voltage UnArt. No.
CD14400Up to ULL =14400 V (UNGR = 8400 V)B98039054
