LINETRAXX® SmartDetect MRCDB425

Response value adjustable from 30 mA to 3 A
2 alarm relays (changeover contacts) for prewarning and main alarm
Versions with TFT display or LED strip measurement value display
NFC interface for easy configuration with the Bender Connect app
Modbus RTU interface for reading out measurement values and parameterising the device

Modular residual current devices of type MRCDB425 are designed for AC/DC sensitive residual and fault current measurement in earthed TN and TT networks. The devices can be used as an additional protective measure for the following protection goals, among others:

Protection against indirect contact (DIN VDE 0100-410, IEC60364-4-41)
Protection against thermal effects (DIN VDE 0100-420, IEC60364-4-42)
System protection (DIN VDE 0100-430, IEC60364-4-43)
Protection against fire risks (DIN VDE 0100-530, IEC60364-5-53)

A modular residual current device in accordance with product standard DIN EN 60947-2 Annex M must be operated together with a suitable measuring current transformer (CTUB102-CTBCxxx(P)) and a circuit breaker with undervoltage release, which switches off under load within a maximum of 20 ms.

Questions? Contact us!

Response value adjustable from 30 mA to 3 A
2 alarm relays (changeover contacts) for prewarning and main alarm
Versions with TFT display or LED strip measurement value display
NFC interface for easy configuration with the Bender Connect app
Modbus RTU interface for reading out measurement values and parameterising the device

Modular residual current devices of type MRCDB425 are designed for AC/DC sensitive residual and fault current measurement in earthed TN and TT networks. The devices can be used as an additional protective measure for the following protection goals, among others:

Protection against indirect contact (DIN VDE 0100-410, IEC60364-4-41)
Protection against thermal effects (DIN VDE 0100-420, IEC60364-4-42)
System protection (DIN VDE 0100-430, IEC60364-4-43)
Protection against fire risks (DIN VDE 0100-530, IEC60364-5-53)

A modular residual current device in accordance with product standard DIN EN 60947-2 Annex M must be operated together with a suitable measuring current transformer (CTUB102-CTBCxxx(P)) and a circuit breaker with undervoltage release, which switches off under load within a maximum of 20 ms.

Questions? Contact us!

Features

Special features

1 measuring channel for AC, pulsed DC, or AC/DC sensitive measuring
Configurable frequency response
TFT display for convenient operation and configuration (MRCDB425-D)
Functionality can be expanded with unlockable software modules
Simple configuration with Bender Connect App via NFC interface
Customer-specific factory settings possible

Residual current measurement

Modular residual current device (MRCD) in accordance with DIN EN IEC 60947-2 Annex M
1 channel for residual current measurement
Either AC, pulsed DC, or AC/DC sensitive measuring
Type A, type F, type B and type B+ characteristics can be set in accordance with IEC 60755 (or VDE 0664-400)
Measurement of AC/DC (r.m.s. value) and AC and DC components
Frequency range: DC, 15 Hz…20 kHz
Measurement of harmonics up to the 20th harmonic
Measurement of harmonics up to the 400th harmonic (with optional function module A: harmonic analysis (FFT))
Calculation of the THD value

Response value monitoring

Main alarm with adjustable residual response value I_Δn
Prewarning: 10…100 % of the residual response value I_Δn
Separate evaluation of AC/DC (RMS) or AC and DC components
Response value 30 mA…3 A
Configurable frequency response
Adjustable time delays
Fault-memory behaviour selectable
Start-up delay configurable
Continuous CT-connection monitoring
Immediate release for response value 30 mA

Display and operation

NFC interface for parameter setting with the Bender Connect App

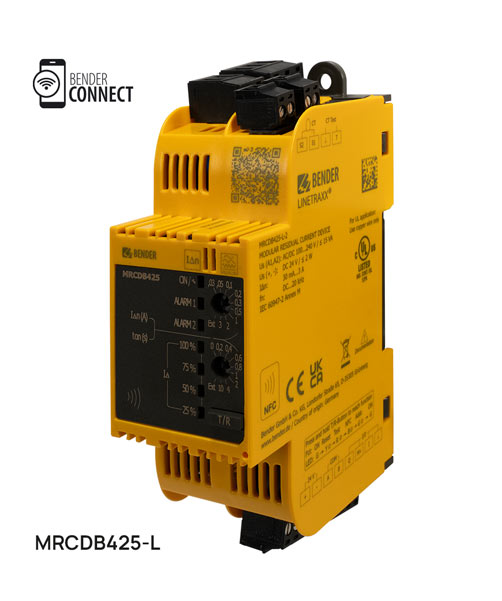

LED-strip measured value display (MRCDB425-L)
– Device status LED
– Percentage measurement indication
– Alarm LEDs for prewarning and main alarm
TFT display (MRCDB425-D)
– Device status LED
– Alarm LED
– Full text menu
– 4-button navigation
Integrated combined test/reset button, connection for external buttons
Sealable transparent cover

Interfaces

Digital input (I)
Digital input/output (Q)
Multifunctional digital/analogue output (M+)
Alarm relays K1 and K2
Modbus RTU (RS-485)
NFC interface for device parameter setting via Bender Connect App with the device energised or de-energised
Test output for external connected measuring current transformer monitoring

Applications

As a protective measure for the installation of a residual current device within the scope of protection objectives for personal safety, fire protection and system protection.
Generally as an alternative to conventional RCDs at higher voltages and currents, possible false tripping of these RCDs, as well as flexible adaptation to system conditions.
