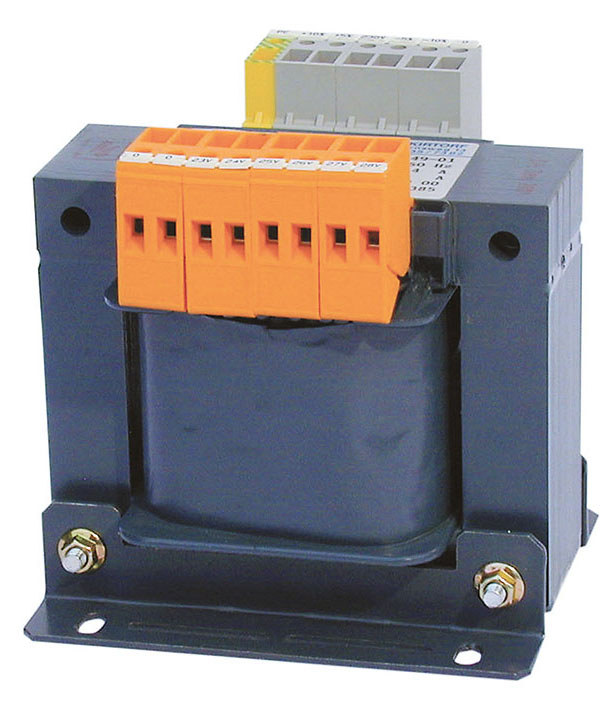

ESL0107 transformers for operating theatre lights

  • Operating-theatre-light transformers
  • Voltage adaptation to primary and secondary side
  • Shield winding
  • Insulated mounting brackets
  • Reinforced insulation

The transformers of the ESL0107 series have reinforced insulation and comply with the requirements of IEC 61558-2 -6 / DIN EN 61558-2-6 (VDE 0570-1). The transformers are fitted with tapping points for fine-step voltage adaptation on the primary and secondary side and thus meet the requirements for power supplies of operating theatre luminaires in Group 2 rooms. The windings are galvanically isolated.

In order to minimize electrical interferences, an electrostatic screen is installed between the primary and secondary winding the lead out of which is connected to an insulated terminal for connection to the equipotential bonding.

The fixing angles are isolated from the transformer core in order to ensure isolated installation in accordance with the requirements of the respective standards. Protection against corrosion is guaranteed by a complete resin impregnation. The transformers are designed for use in dry locations.

Questions? Contact us!

OP-Leuchten-Transformatoren ESL0107
OP-Leuchten-Transformatoren ESL0107
  • Operating-theatre-light transformers
  • Voltage adaptation to primary and secondary side
  • Shield winding
  • Insulated mounting brackets
  • Reinforced insulation

The transformers of the ESL0107 series have reinforced insulation and comply with the requirements of IEC 61558-2 -6 / DIN EN 61558-2-6 (VDE 0570-1). The transformers are fitted with tapping points for fine-step voltage adaptation on the primary and secondary side and thus meet the requirements for power supplies of operating theatre luminaires in Group 2 rooms. The windings are galvanically isolated.

In order to minimize electrical interferences, an electrostatic screen is installed between the primary and secondary winding the lead out of which is connected to an insulated terminal for connection to the equipotential bonding.

The fixing angles are isolated from the transformer core in order to ensure isolated installation in accordance with the requirements of the respective standards. Protection against corrosion is guaranteed by a complete resin impregnation. The transformers are designed for use in dry locations.

Questions? Contact us!

Features

  • Screen winding lead out for external connection
  • Insulated mounting angles
  • Degree of protection IP 00 (construction type: open)
  • Reinforced insulation
  • Classification of insulation ta 40/E
  • Connections: screw terminals
  • Vector group: IiO

ESL0107 transformers for operating theatre lights Variant(s)

TypeArt. No.
ESL0107/120B924632
ESL0107/160B924633
ESL0107/280B924634
ESL0107/400B924637
ESL0107/630B924638
ESL0107/1000B924639

Downloads for ESL0107 transformers for operating theatre lights

NameCategorySizeLanguageTimestampD-/B-Number
ESL0107 - DS0107 CE Declarations of conformity 91.1 KB 2022/08/1212.08.2022
ESL0107 Datasheets 348.1 KB DE2019/05/1313.05.2019D00110
ESL0107 Datasheets 352.4 KB EN2019/05/1313.05.2019D00110
ESL0107 Datasheets 507.9 KB ES2019/05/1313.05.2019D00110
Sicherheits-, Montage- und Wartungshaltungshinweise für Trenn-Transformatoren Manuals 699.6 KB DE2022/06/1414.06.2022D00463
Safety, installation and maintenance instructions for isolating transformers Manuals 699.6 KB EN2022/06/1414.06.2022D00463
