Safeguarding Critical Care Areas

Floor/wall mounted Isolated Power Systems

Compact electrical safety in operating theatres and intensive care units

[] IT Verteiler

In group 2 rooms, the use of unearthed systems (IT systems) is a requirement as an interruption to the power supply is potentially life-threatening to the patients being treated. Treatments cannot be interrupted and repeated, tests results need to be saved. The mandatory use of the IT system means the medical electrical devices/systems remain active on a first fault and there is no dangerous increase in the touch voltage.

Market segment brochure Electrical safety costs little
Technical paper New methods in construction
Brochure Turnkey healthcare solutions

Recommended equipment and distribution boards:

Analysing and reporting:

Recommended systems for insulation monitoring:

Recommended systems for insulation fault location:

Recommended transformers:

Recommended equipment and distribution boards:

Recommended systems for permanent monitoring:

  • DIN VDE 0100-710
  • HD 60364-7-710
  • IEC 60364-7-710
  • IEC 60947-6-1

Uninterruptible Power Supplies (UPS)

Provide emergency power supply to specific loads in the event of main power failure

UPS

Industry standards, including IEC 60364-7-710 and HTM06-01, require that if a hospital’s main power supply fails an alternative should kick-in within 0.5 seconds, at least in areas where isolated power is installed. And for some electronic equipment even this is too long.

Electrical power supplies and IPS systems can have their reliability enhanced with Uninterruptible Power Supplies, ATICs and back-up generators. UPS systems can be supplied as standalone units or for enhanced resilience, may be configured as N+ 1 solution with single, double or triple input supplies. Isolated Power Supplies configured with ATICs and N+1 UPS systems are often considered the most resilient solutions available.

Alarms and diagnostics from the various elements of the system can be integrated to provide operational reports, predictive forecasts, current and emergency information.

This can be supplied directly to theatre staff, facilities managers and other appropriate people.

Brochure Turnkey healthcare solutions

Recommended systems for insulation fault location:

Guidance on the use of UPS for medical locations is provided by:
  • British Standards BS7671:2008 (2011)
  • HTM 06-01 2017
  • ETCI ET101:2008

Condition Monitoring and Communication

Find out today what won't happen tomorrow

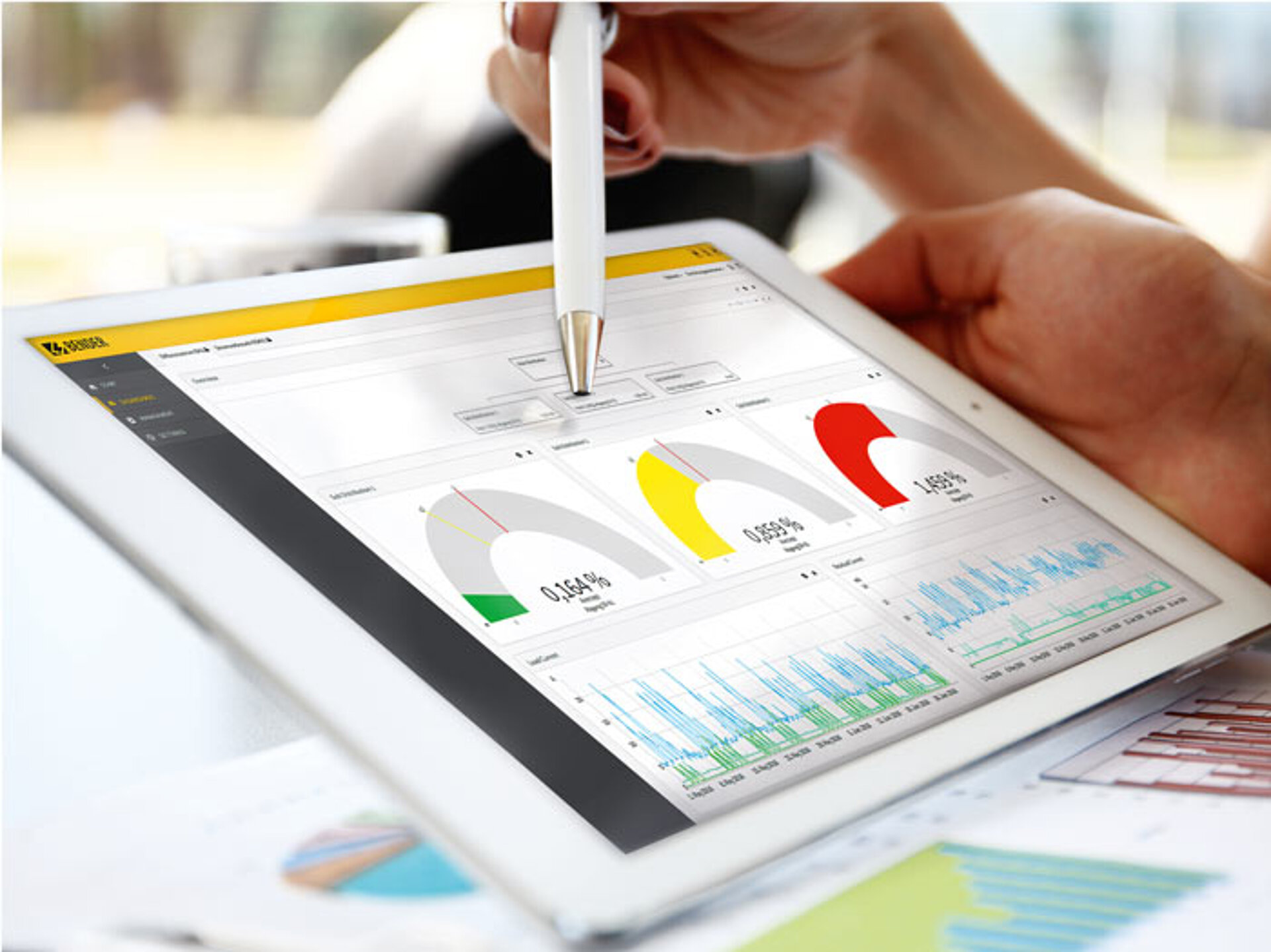

powerscout

Signalling, operation, communication – Overview of your system Despite the increasing presence of technology in today's society – people retain a crucial role. These people need to be provided with the right information, in the right place and at the right time, so that they can take prompt and appropriate action.

Brochure Turnkey healthcare solutions

Analysing and reporting:

Recommended gateways:


Nurses' station

Everything at a glance for safe critical care areas

[] Schwestern-Dienstplatz MK800

All the information, including any alarms from operating theatres or intensive care units, comes together at the nurses’ station. It is good when the alarm indicator and test combination installed is as compact, simple to use and clear as possible. External alarms, (UPS off, laser warning on, etc.) should also be visible there. Alarm indicator and test combinations from Bender are adapted to your specific requirements.

Market segment brochure Electrical safety costs little
Brochure Turnkey healthcare solutions

Recommended alarm indicator and test combinations:

DIN VDE 0100-710
Errichten von Niederspannungsanlagen - Teil 7-710: Anforderungen für Betriebsstätten, Räume und Anlagen besonderer Art – Medizinisch genutzte Bereiche

HD 60364-7-710
Low-voltage electrical installations - Part 7-710: Requirements for special installations or locations - Medical Locations (IEC 60364-7-710:2002, modified); German implementation HD 60364-7-710:2012

IEC 60364-7-710
Electrical installations of buildings - Part 7-710: Requirements for special installations or locations - Medical locations

IEC 60947-6-1
Low-voltage switchgear and controlgear - Part 6-1: Multiple function equipment - Transfer switching equipment

Equipotential Bonding Bar (EBB) or Earth Reference Bar (ERB)

For safe earthing of hospital areas and equipment, ensuring electrical safety for staff and patients

EBB

The purpose of an EBB or earth reference bar (ERB) is to equalise the potential difference between conductive parts and protective conductors located in the Group 1 and 2 Medical Locations.

All extraneous metalwork within the patient area must be bonded to the EBB.  In these areas the measured resistance of the protective conductor between the earth terminal of any socket-outlet (or fixed equipment) and any extraneous conductive part shall not exceed 0.2Ω, assuming type `B` MCBs are being used and further consideration should be given when using alternative types.

Three types of Bender EBBs are available in a range of size and specifications. Options include single and multi-patient in flush or surface mount enclosures.

Brochure Turnkey healthcare solutions
HTM06-01 and BS7671:2008 section 710
