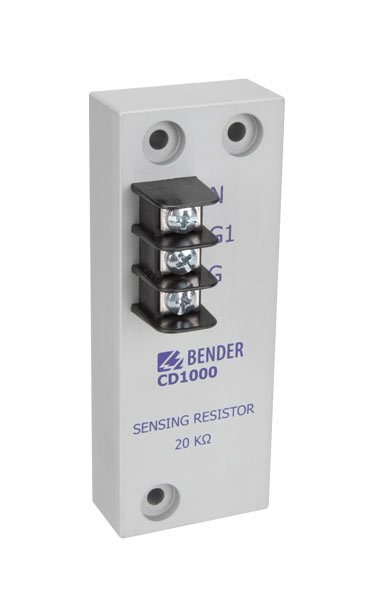

The CD1000 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 690 V (UNGR ≤ 400 V).

The maximum operating altitude is 2000 m above mean sea level.


  • Coupling device for NGRM
  • Range of use up to AC 690 V/DC 400 V system voltage
  • Range of use up to 2000 m


  • The coupling device is suitable for HRG applications up to AC 690 V and/or DC 400 V

Downloads for CD1000

Datasheets CD1000 424.9 KB DE2020/06/02 11:07:0202.06.2020 11:07:02D00397
Datasheets CD1000 422.9 KB EN2020/06/02 11:07:1102.06.2020 11:07:11D00397
Datasheets CD1000 423.5 KB FR2020/05/28 08:56:4728.05.2020 08:56:47D00397
Datasheets CD1000 402.6 KB ES2020/09/08 11:55:0708.09.2020 11:55:07D00397

CD1000 Variants

TypeNominal system voltage UnArt. No.
CD1000Up to ULL = 690 V (UNGR = 400 V)B98039010
