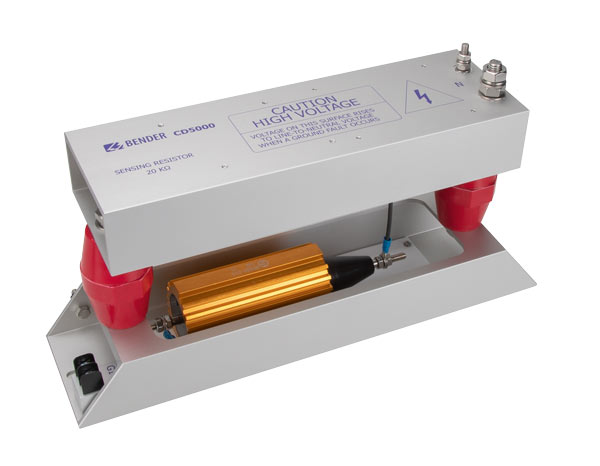

CD5000

CD5000

The CD5000 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 4300 V (UNGR ≤ 2500 V).

The maximum operating altitude is 5000 m above mean sea level.

Features

  • Coupling device for NGRM
  • Range of use up to AC 4300 V/DC 2500 V system voltage
  • Range of use up to 5000 m

Applications

  • The coupling device is suitable for HRG applications up to AC 4300 V and/or DC 2500 V.

Downloads for CD5000

CategoryNameSizeLanguageTimestampD-/B-Number
Datasheets CD5000 464.4 KB DE2020/11/04 13:28:5504.11.2020 13:28:55D00398
Datasheets CD5000 462.9 KB EN2020/11/04 13:29:0504.11.2020 13:29:05D00398
Datasheets CD5000 461.3 KB FR2020/11/04 13:29:2704.11.2020 13:29:27D00398
Datasheets CD5000 440.9 KB ES2020/11/04 13:29:1504.11.2020 13:29:15D00398

CD5000 Variants

TypeNominal system voltage UnArt. No.
CD5000Up to ULL = 4300 V (UNGR = 2500 V)B98039011
