  • Increase of the Isometers' nominal voltage range
  • Used with Isometers of the IRDH… and iso685 series
  • For medium-voltage applications up to AC 12 kV

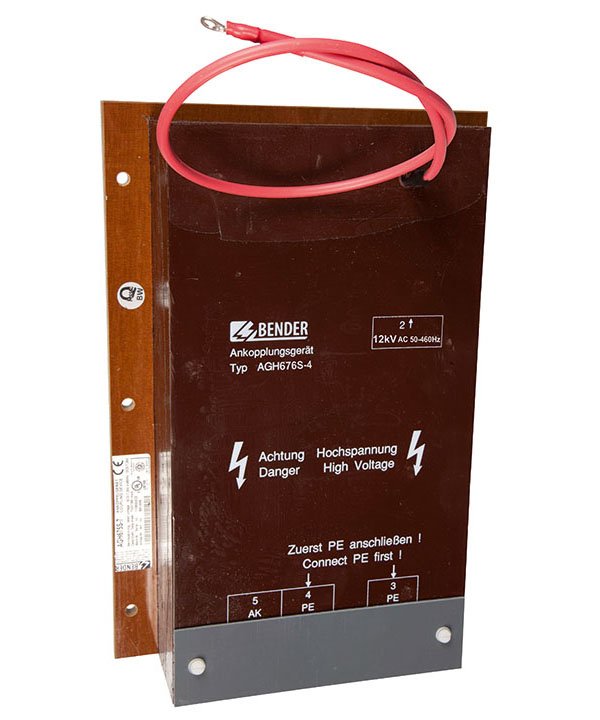

The AGH676S-4 is used for coupling the ISOMETER® IR420-D64 to 12 kV-AC systems in offline mode.

Alternatively, the AGH676S-4 can be used in combination with iso685…, IRDH275-4xx or IRDH375-4xx for 12-kV-AC systems in online mode.

The coupling device must only be used in combination with the ISOMETER®. All device combinations listed above are not suitable for systems containing converters.

  • Ordering information
  • Downloads

Variants of AGH676S-4

TypeNominal system voltage UnCable lengthArt. No.
AGH676S-4AC, 3(N)AC 0…12 kV, 50…460 Hz2000 mmB913055

Downloads for AGH676S-4



Category Product Language Size Download
