SOLIDO™ Pendants for Intensive Care Units
- Specifically designed for ICU
- Enhances delivery of patient care
- Easy to manoeuvre and adjust
- Improves critical workspace design
Solido pendants are durable, modular and easy to install ensuring maximum reliability and minimum maintenance for intensive care teams.
All pendants in this versatile range are Class 2 B medical devices and are customisable for intensive care environments. The pendants are available in a variety of configurations and provide a centralised supply of medical gases, data and electrical sockets within the critical care area. Easy to manoeuvre, Solido pendants ensure straightforward supply of medical electrical equipment and accessories to aid nursing practices and improve patient outcomes.
The Solido medical pendants incorporates wall mounted solutions specifically designed for intensive care units. The pendants can be supplied with LED indirect and night lights. Indirect lighting is integrated inside the top head and diffuses a pleasant ambient illumination. The night lights are placed at the bottom of the head and offers a gentle beam light that does not disturb the patient while resting.
Designed, installed and maintained by Bender UK.

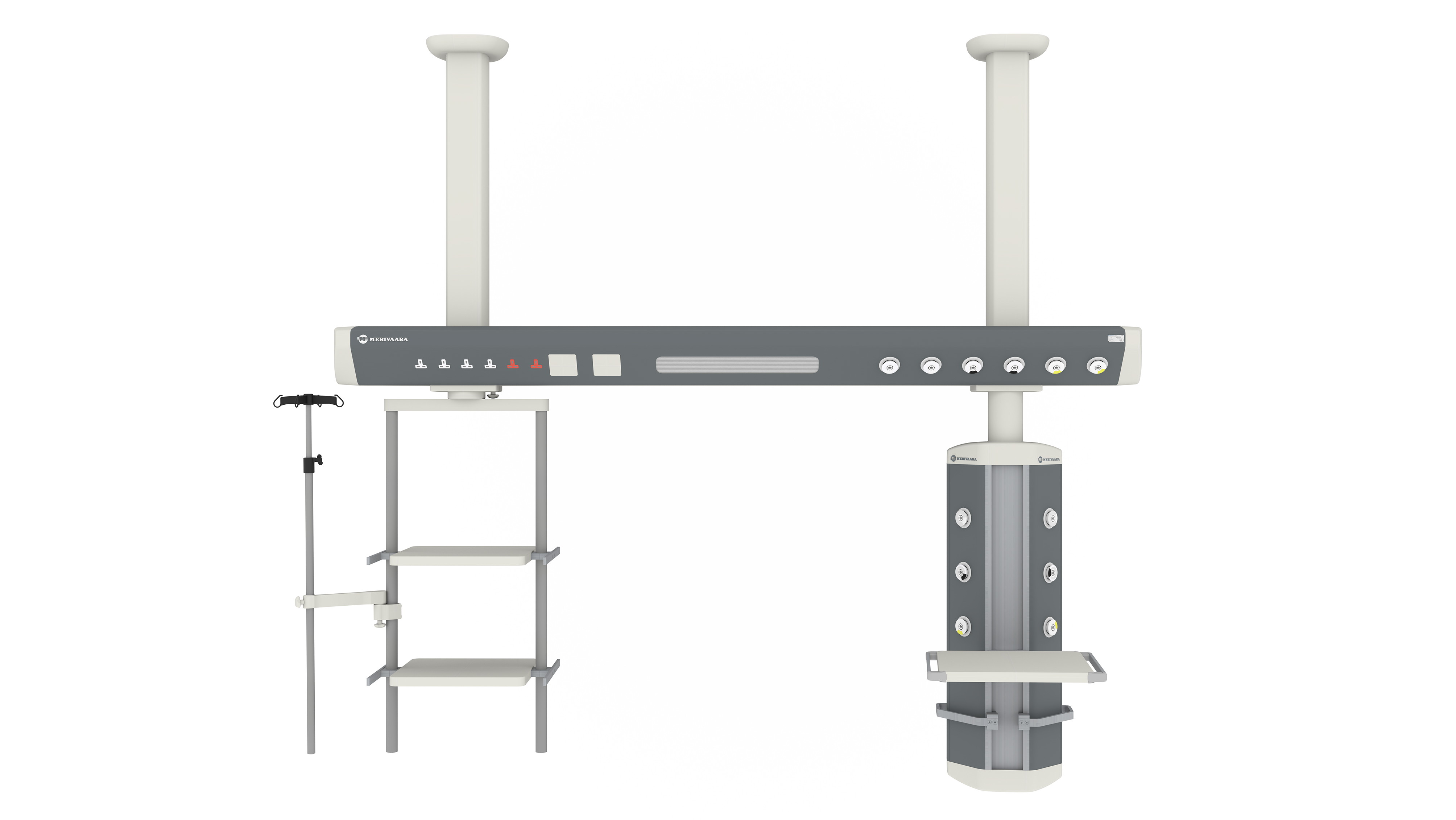

![[Translate to English:] Solido bridge](/fileadmin/_processed_/d/2/csm_solido-bridge_d47c413851.jpg "[Translate to English:] Solido bridge")

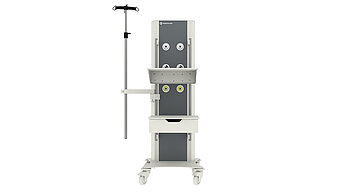

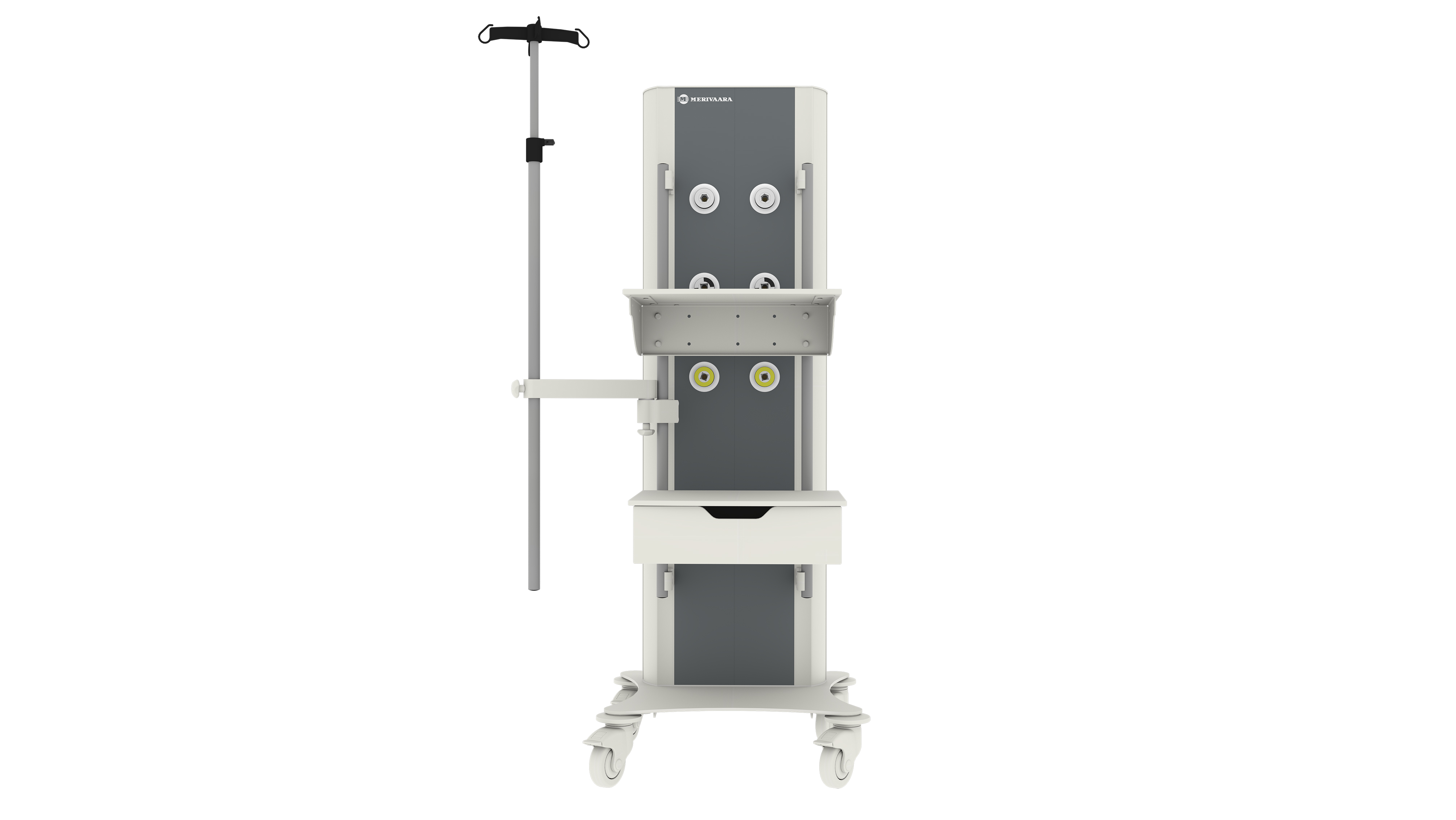

![[Translate to English:] Solido mobile](/fileadmin/_processed_/4/6/csm_solido-mobile_0c8d8db60d.jpg "[Translate to English:] Solido mobile")

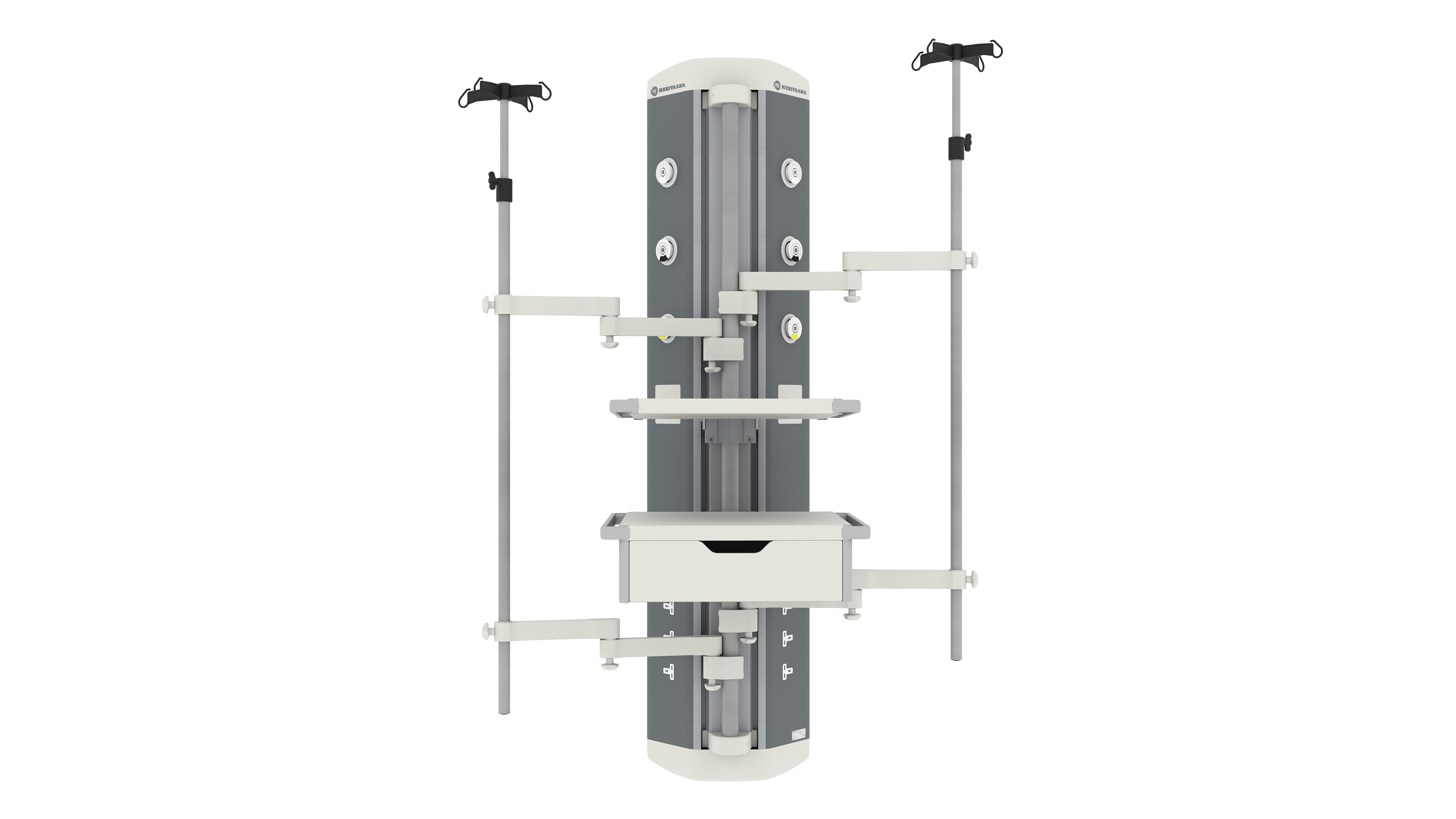

![[Translate to English:] Solido wall](/fileadmin/_processed_/c/3/csm_solido-wall_2c98f70568.jpg "[Translate to English:] Solido wall")
![[Translate to English:] Solido bridge](/fileadmin/_processed_/d/2/csm_solido-bridge_96778941ae.jpg "[Translate to English:] Solido bridge")
![[Translate to English:] Solido mobile](/fileadmin/_processed_/4/6/csm_solido-mobile_2a5436b8f6.jpg "[Translate to English:] Solido mobile")
![[Translate to English:] Solido wall](/fileadmin/_processed_/c/3/csm_solido-wall_6677a84a66.jpg "[Translate to English:] Solido wall")
- Specifically designed for ICU
- Enhances delivery of patient care
- Easy to manoeuvre and adjust
- Improves critical workspace design
Solido pendants are durable, modular and easy to install ensuring maximum reliability and minimum maintenance for intensive care teams.
All pendants in this versatile range are Class 2 B medical devices and are customisable for intensive care environments. The pendants are available in a variety of configurations and provide a centralised supply of medical gases, data and electrical sockets within the critical care area. Easy to manoeuvre, Solido pendants ensure straightforward supply of medical electrical equipment and accessories to aid nursing practices and improve patient outcomes.
The Solido medical pendants incorporates wall mounted solutions specifically designed for intensive care units. The pendants can be supplied with LED indirect and night lights. Indirect lighting is integrated inside the top head and diffuses a pleasant ambient illumination. The night lights are placed at the bottom of the head and offers a gentle beam light that does not disturb the patient while resting.
Designed, installed and maintained by Bender UK.
Features
- Wall and ceiling mount solutions
- Fixed or adjustable height
- Variety of source head and arm options
- Designed with track rails for movement
- LED direct, indirect or night lighting as optional
- Class 2B medical device according to Medical Device Directive 93/42 ECC
- Various electrical sockets, gas and data outlets available
- Rotation of arms can be limited (upper arm 1° and lower arm 30°) to prevent collision
- Made of extruded aluminium and epoxy powder coating for improved hygiene
Applications
- Intensive care units
- Critical care units
- Special care baby units
- Acute care units
SOLIDO™ Pendants for Intensive Care Units Variant(s)
| Length | Load (kg) | Lift (mm) | Weight of the arm system with the maximum admissible load (kg) | Maximum torque exerted by the system (Nm) |
|---|---|---|---|---|
| Single arm swivelling 0…330° 600 mm | 400 | - | 498 | 2527 |
| Single arm swivelling 0…330° 900 mm | 270 | - | 372 | 2789 |
| Single arm swivelling 0…330° 1200 mm | 200 | - | 306 | 3103 |
| Double arm swivelling 0…330° 600+600 mm | 220 | - | 346 | 3034 |
| Double arm swivelling 0…330° 900+600 mm | 200 | - | 330 | 3689 |
| Double arm swivelling 0…330° 900+900 mm | 180 | - | 314 | 4243 |
| Double arm swivelling 0…330° 1200+900 mm | 150 | - | 288 | 4613 |
| Single arm swivelling 0…330° 800 mm with motorized lift | 260 | 420 | 371 | 2294 |
| Single arm swivelling 0…330° 1000 mm with motorized lift | 180 | 600 | 314 | 2423 |
| Single arm swivelling 0…330° 1250 mm with motorized lift | 145 | 750 | 283 | 2835 |
| Double arm swivelling 0…330° 600+800 mm with motorized lift | 260 | 420 | 399 | 4076 |
| Double arm swivelling 0…330° 600+1000 mm with motorized lift | 180 | 600 | 342 | 3905 |
| Double arm swivelling 0…330° 900+800 mm with motorized lift | 260 | 420 | 403 | 5161 |
| Double arm swivelling 0…330° 900+1000 mm with motorized lift | 180 | 600 | 346 | 4828 |
| Double arm swivelling 0…330° 1000+1000 mm with motorized lift | 180 | 600 | 348 | 5148 |
Optional Accessories for SOLIDO™ Pendants for Intensive Care Units
There is a wide range of optional accessories available.
Downloads for SOLIDO™ Pendants for Intensive Care Units
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Solido Pendant Brochure | Product Overviews | 4.4 MB | EN | 2023/08/0909.08.2023 | |
| Merivaara - Solido Solutions - Product Card | Product Overviews | 454.8 KB | EN | 2022/05/2525.05.2022 | |
| Solido™ for Intensive Care | Product Brochures | 980.7 KB | EN | 2022/05/2525.05.2022 |
