SOLIDO™ Pendants for Operating Theatres
- User-friendly and manoeuvrable
- Adaptable and customisable
- Maximum stability and adjustability
- Reduces OR trip hazards
Merivaara offer a variety of horizontal and vertical pendants that are Class 2 B medical devices, designed specifically to facilitate clinical procedures in the operating room.
Solido electrical pendants provide a centralised supply of medical gases, data and electrical sockets within the patient area.
Available in multiple configurations with different service head, arm and monitor options, the pendants can be adapted to suit the needs of the theatre staff and surgeons with all required electrical, gas and medical components and a range of accessories that can be constructed to customised specifications.
These ceiling-mount pendants are designed to provide maximum flexibility and reliability and improve efficiency and work flow of clinical procedures. The braking system ensures anti-collision and maximum stability within operating theatres for patient safety.
Designed, installed and maintained by Bender UK.

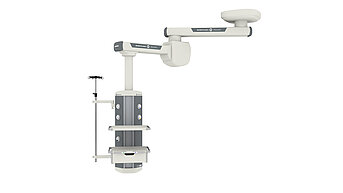

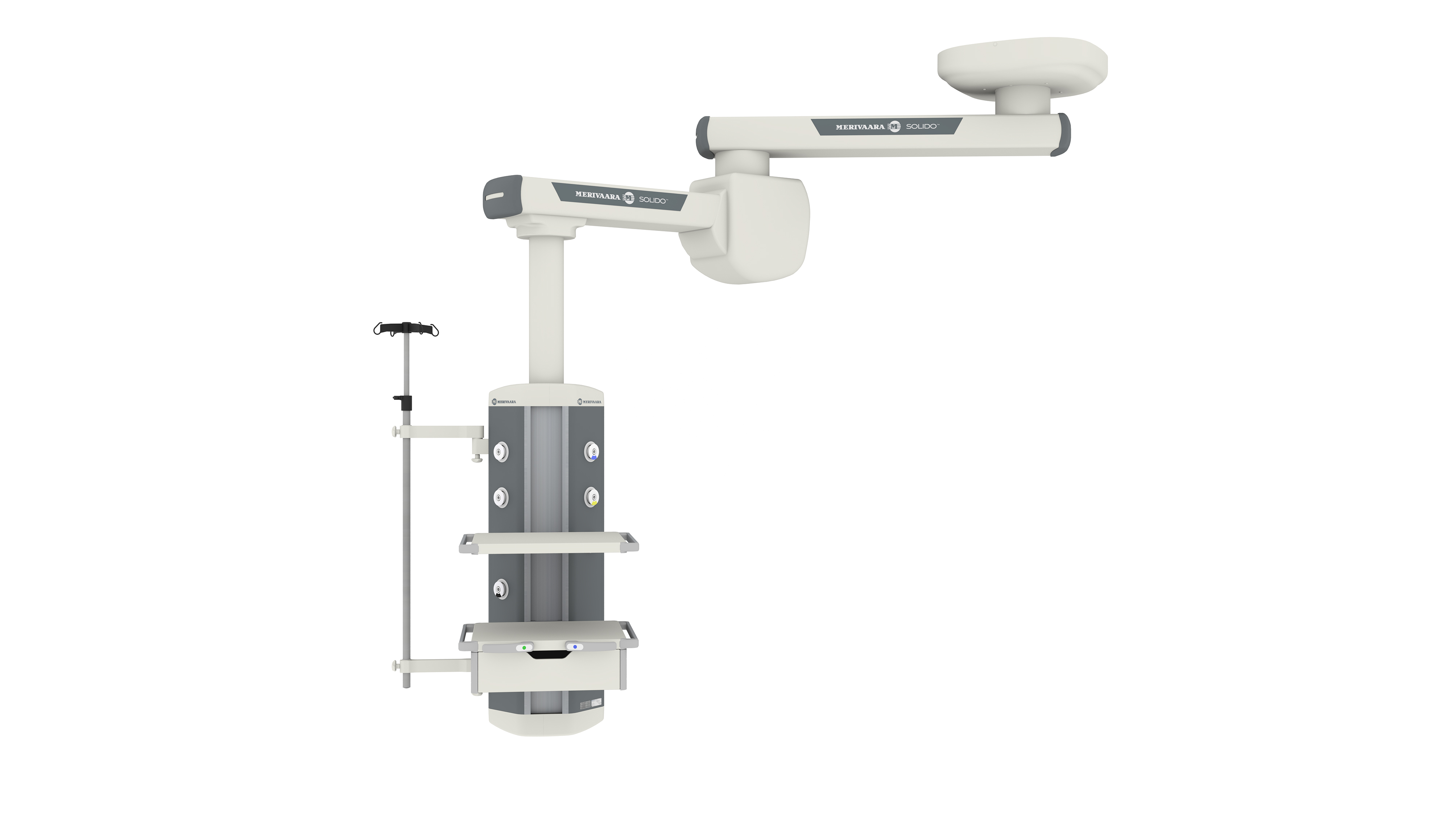

![[Translate to English:] Solido double arm motorized hammer](/fileadmin/_processed_/0/6/csm_solido-double-arm-motorized-hammer_506a41c8f1.jpg "[Translate to English:] Solido double arm motorized hammer")

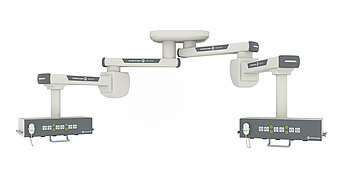

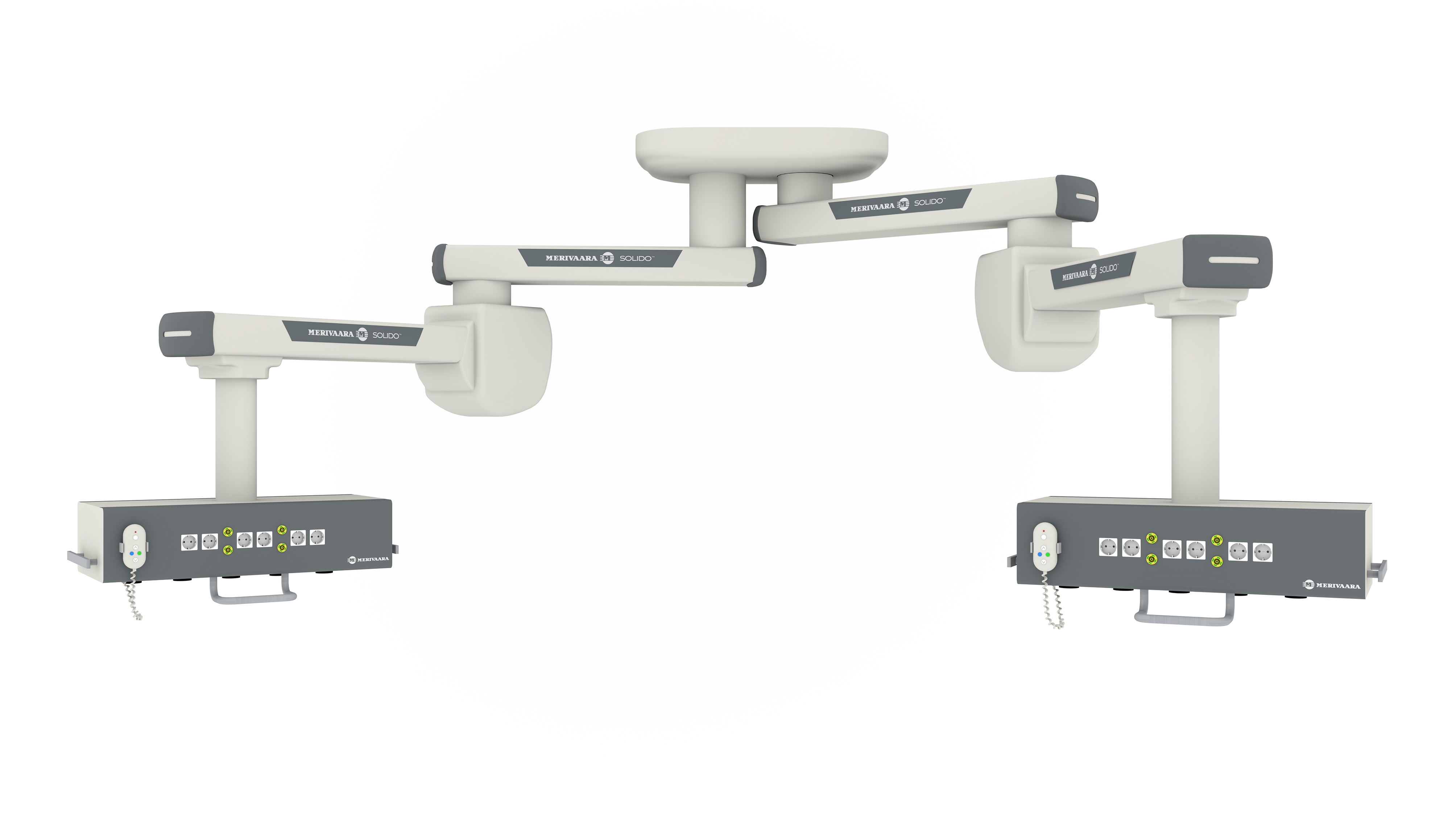

![[Translate to English:] Solido duo duble arm motorized hammer](/fileadmin/_processed_/4/c/csm_solido-duo-double-arm-motorized-hammer_6d62ba287b.jpg "[Translate to English:] Solido duo duble arm motorized hammer")

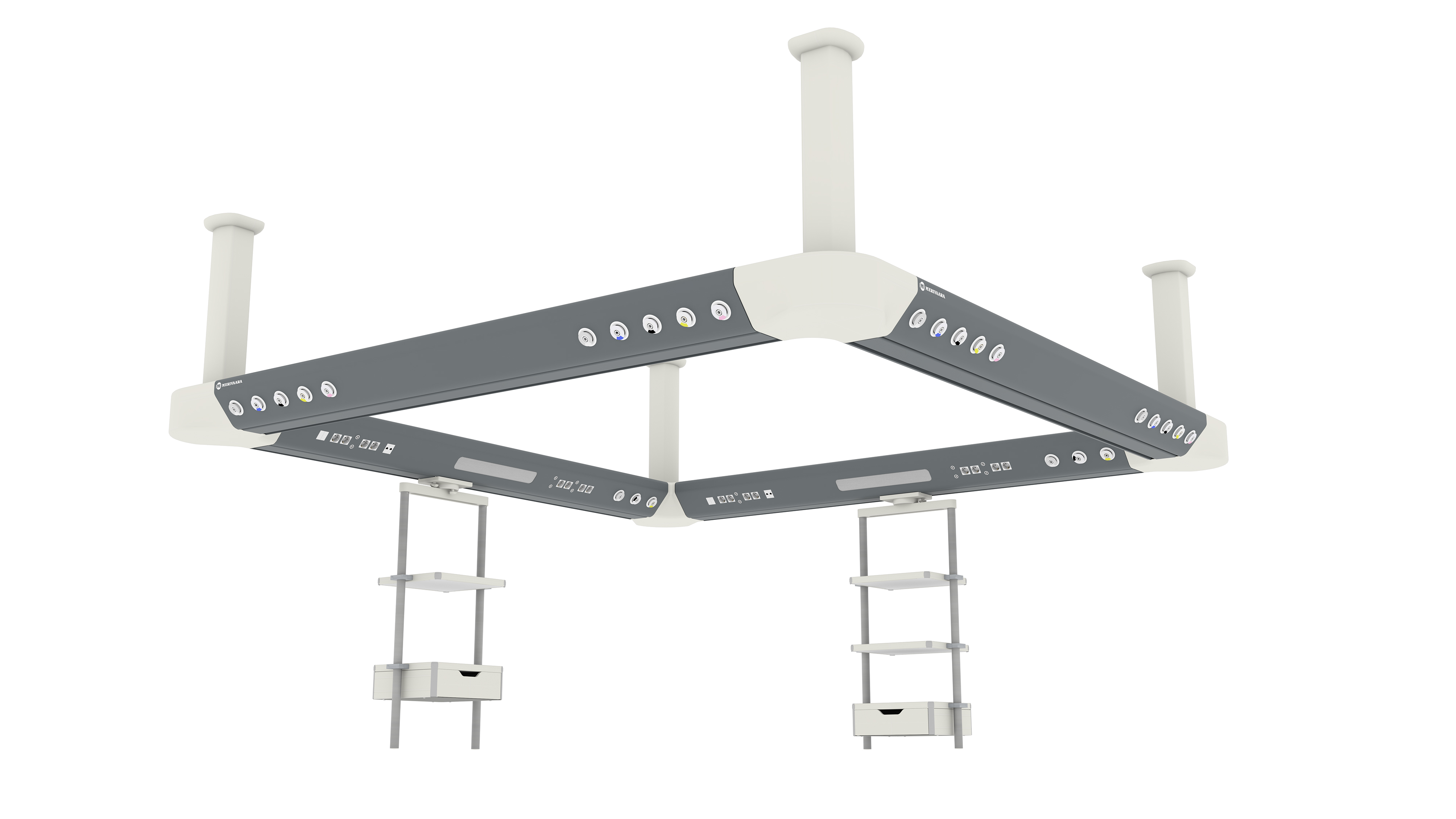

![[Translate to English:] Solido media bridge](/fileadmin/_processed_/0/3/csm_solido-media-bridge_bc3d5e37e8.jpg "[Translate to English:] Solido media bridge")
![[Translate to English:] Solido double arm motorized hammer](/fileadmin/_processed_/0/6/csm_solido-double-arm-motorized-hammer_80017c6ec6.jpg "[Translate to English:] Solido double arm motorized hammer")
![[Translate to English:] Solido duo duble arm motorized hammer](/fileadmin/_processed_/4/c/csm_solido-duo-double-arm-motorized-hammer_d1b6f1dda2.jpg "[Translate to English:] Solido duo duble arm motorized hammer")
![[Translate to English:] Solido media bridge](/fileadmin/_processed_/0/3/csm_solido-media-bridge_8b25aa7fff.jpg "[Translate to English:] Solido media bridge")
- User-friendly and manoeuvrable
- Adaptable and customisable
- Maximum stability and adjustability
- Reduces OR trip hazards
Merivaara offer a variety of horizontal and vertical pendants that are Class 2 B medical devices, designed specifically to facilitate clinical procedures in the operating room.
Solido electrical pendants provide a centralised supply of medical gases, data and electrical sockets within the patient area.
Available in multiple configurations with different service head, arm and monitor options, the pendants can be adapted to suit the needs of the theatre staff and surgeons with all required electrical, gas and medical components and a range of accessories that can be constructed to customised specifications.
These ceiling-mount pendants are designed to provide maximum flexibility and reliability and improve efficiency and work flow of clinical procedures. The braking system ensures anti-collision and maximum stability within operating theatres for patient safety.
Designed, installed and maintained by Bender UK.
Features
- Wall and ceiling mount solutions
- Fixed or adjustable height
- Variety of source head and arm options
- Class 2B medical device according to Medical Device Directive 93/42 ECC
- Various electrical sockets, gas and data outlets available
- Available in tandem, monitor, lights or patient lift configurations
- Rotation of arms can be limited (upper arm 1° and lower arm 30°) to prevent collision
- Made of extruded aluminium and epoxy powder coating for improved hygiene
Applications
- Operating theatres
- Anaesthetists rooms
SOLIDO™ Pendants for Operating Theatres Variant(s)
| Length | Load (kg) | Lift (mm) | Weight of the arm system with the maximum admissible load (kg) | Maximum torque exerted by the system (Nm) |
|---|---|---|---|---|
| Single arm swivelling 0…330° 600 mm | 400 | - | 498 | 2527 |
| Single arm swivelling 0…330° 900 mm | 270 | - | 372 | 2789 |
| Single arm swivelling 0…330° 1200 mm | 200 | - | 306 | 3103 |
| Double arm swivelling 0…330° 600+600 mm | 220 | - | 346 | 3034 |
| Double arm swivelling 0…330° 900+600 mm | 200 | - | 330 | 3689 |
| Double arm swivelling 0…330° 900+900 mm | 180 | - | 314 | 4243 |
| Double arm swivelling 0…330° 1200+900 mm | 150 | - | 288 | 4613 |
| Single arm swivelling 0…330° 800 mm with motorized lift | 260 | 420 | 371 | 2294 |
| Single arm swivelling 0…330° 1000 mm ith motorized lift | 180 | 600 | 314 | 2423 |
| Single arm swivelling 0…330° 1250 mm with motorized lift | 145 | 750 | 283 | 2835 |
| Double arm swivelling 0…330° 600+800 mm with motorized lift | 260 | 420 | 399 | 4076 |
| Double arm swivelling 0…330° 600+1000 mm with motorized lift | 180 | 600 | 342 | 3905 |
| Double arm swivelling 0…330° 900+800 mm with motorized lift | 260 | 420 | 403 | 5161 |
| Double arm swivelling 0…330° 900+1000 mm with motorized lift | 180 | 600 | 346 | 4828 |
| Double arm swivelling 0…330° 1000+1000 mm with motorized lift | 180 | 600 | 348 | 5148 |
Optional Accessories for SOLIDO™ Pendants for Operating Theatres
There is a wide range of optional accessories available
