This ISOMETER® is intended for monitoring the insulation resistance as well as the voltage of a battery during its assembly from individual battery cells. The ISOMETER® monitors the insulation resistance of batteries with nominal system voltages of DC 0…400 V. The maximum permissible system leakage capacitance Ce is 1 μF. The resulting measured values allow diagnosing the type and location of the insulation fault.
In order to meet the requirements of applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the area of application indicated in the technical specifications
|Type||Nominal system voltage Un||Art. No.|

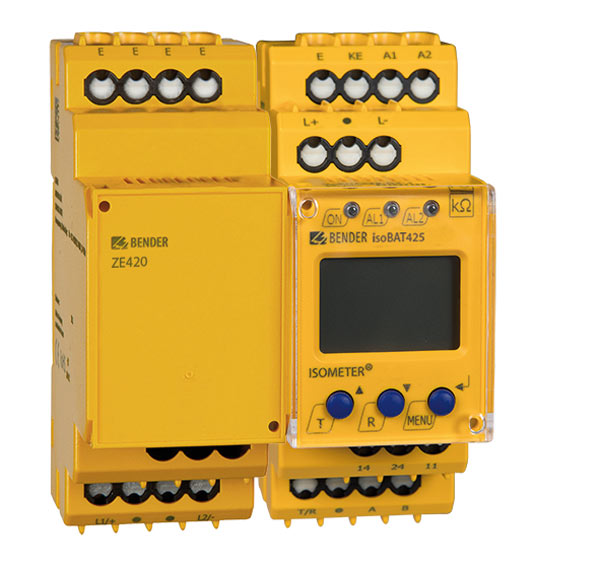

|isoBAT425-D4-4 with ZE420||DC 0…400 V||B71036327|
Devices are available as a set.
|Mounting clip for screw mounting (one piece per device)||B98060008|
|Mounting frame XM420||B990994|
|Declarations of Conformity||isoxx425 - UKCA||142.1 KB||2022/12/20 05:59:4420.12.2022 05:59:44|
|CE Declarations of conformity||isoXX425||151.9 KB||2023/01/09 06:50:5109.01.2023 06:50:51|
|Datasheets||isoBAT425||371.1 KB||DE||2019/07/29 06:07:4529.07.2019 06:07:45||D00308|
|Datasheets||isoBAT425||369.7 KB||EN||2019/07/29 06:07:5229.07.2019 06:07:52||D00308|
|Manuals||isoBAT425||1.7 MB||DE||2020/07/30 11:43:4430.07.2020 11:43:44||D00308|
|Manuals||isoBAT425||1.5 MB||EN||2020/08/03 10:24:0403.08.2020 10:24:04||D00308|
|Quickstarts||isoBAT425||1.5 MB||DE||2020/08/03 10:24:0403.08.2020 10:24:04||D00308|
|Quickstarts||isoBAT425||1.5 MB||EN||2020/08/03 10:24:0403.08.2020 10:24:04||D00308|
