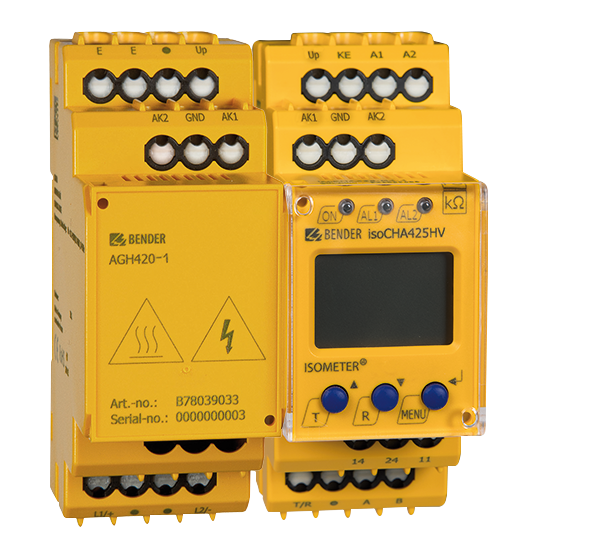

ISOMETER® isoCHA425HV with AGH420-1/AGH421-1
- Switchable between CCS (Combined Charging System) and CHAdeMO
- Nominal voltages up to DC 1000 V
- Detection of symmetrical and asymmetrical insulation faults
- Electrically isolated Modbus RTU interface
- Display of the fault location (DC+/DC/balanced)
The ISOMETER® isoCHA425HV in combination with the AGH420-1/AGH421-1 coupling device monitors the insulation resistance RF for DC fast charging stations according to the CHAdeMO standard or according to the Combined Charging System (CCS) for nominal system voltage ranges between DC 0 V and 1000 V.
In order to meet the requirements of the applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the technical data.
Any other use or a use that goes beyond this constitutes improper use.
- Switchable between CCS (Combined Charging System) and CHAdeMO
- Nominal voltages up to DC 1000 V
- Detection of symmetrical and asymmetrical insulation faults
- Electrically isolated Modbus RTU interface
- Display of the fault location (DC+/DC/balanced)
The ISOMETER® isoCHA425HV in combination with the AGH420-1/AGH421-1 coupling device monitors the insulation resistance RF for DC fast charging stations according to the CHAdeMO standard or according to the Combined Charging System (CCS) for nominal system voltage ranges between DC 0 V and 1000 V.
In order to meet the requirements of the applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the technical data.
Any other use or a use that goes beyond this constitutes improper use.
Features
- Monitoring of the insulation resistance RF of DC charging stations according to CHAdeMO standard or Combined Charging System (CCS)
- CHAdeMO (Mode CHd and CHA):
– Maximum system leakage capacitance 1.6 μF per conductor
– Detection of insulation faults in the system voltage range 50 V to 1000 V
– One-pole insulation faults RFU: RFU≤ 100 kΩ: Response time ≤ 1 s, 100 kΩ < RFU≤ 2 MΩ: Response time ≤ 10 s – Two-pole insulation faults RFS: RFS ≤ 160 kΩ: Response time ≤ 10 s, RFS > 160 kΩ (200 kΩ): no detection (Deactivation) (only CHd) - CCS (Mode dc):
– Detection of insulation faults up to 2 MΩ
– Maximum system leakage capacitance Ce: 20 μF
– Response time tan at Ce ≤ 5 μF or RF ≤ 100 kΩ: ≤ 10 s - Measurement of the system leakage capacitance Ce
- Measurement of the nominal system voltage Un (True RMS) with undervoltage/overvoltage detection
- Measurement of the DC residual voltages UL1e (between L1/+ and earth) as well as UL2e (between L2/- and earth)
- Selectable start-up delay, response delay and delay on release
- Two separately adjustable response value ranges of 5...600 kΩ (Alarm 1, Alarm 2)
- Alarm signalling via LEDs (“AL1”, “AL2”), a display and alarm relays (“K1”, “K2”)
- Automatic device self test with connection monitoring
- Selectable N/C or N/O relay operation
- Measured value indication via a multifunctional LC display
- Fault memory can be activated
- RS-485 (galvanically isolated) including the following protocols:
– BMS interface (Bender measuring device interface) for data exchange with other - Bender components
– Modbus RTU
– IsoData (for continuous data output) - Password protection to prevent unauthorised parameter changes
- Stop mode for disabling the measuring pulse generator and in combination with AGH421-1 disconnection from the monitored system.
Applications
- DC charging stations for electric vehicles in accordance with the Japanese charging standard CHAdeMO
- DC charging stations for electric vehicles according to CCS (Combined Charging System) in compliance with IEC 61851-23
ISOMETER® isoCHA425HV with AGH420-1/AGH421-1 Variant(s)
| Type | Nominal voltage Un | Art. No. Set | Art. No. Contents |
|---|---|---|---|
| isoCHA425HV-D4-4 + AGH420-1 | CCS: DC 0…1000 V CHAdeMO: DC 50…1000 V | B71036396 | B71036394 B78039033 |
| isoCHA425HV-D4-4 + AGH421-1 | CCS: DC 0…1000 V CHAdeMO: DC 50…1000 V | B71036399 | B71036394 B78039034 |
Optional Accessories for ISOMETER® isoCHA425HV with AGH420-1/AGH421-1
| Type | Art. No. |
|---|---|
| Mounting clip for screw mounting (one piece per device) | B98060008 |
| Mounting frame XM420 | B990994 |
