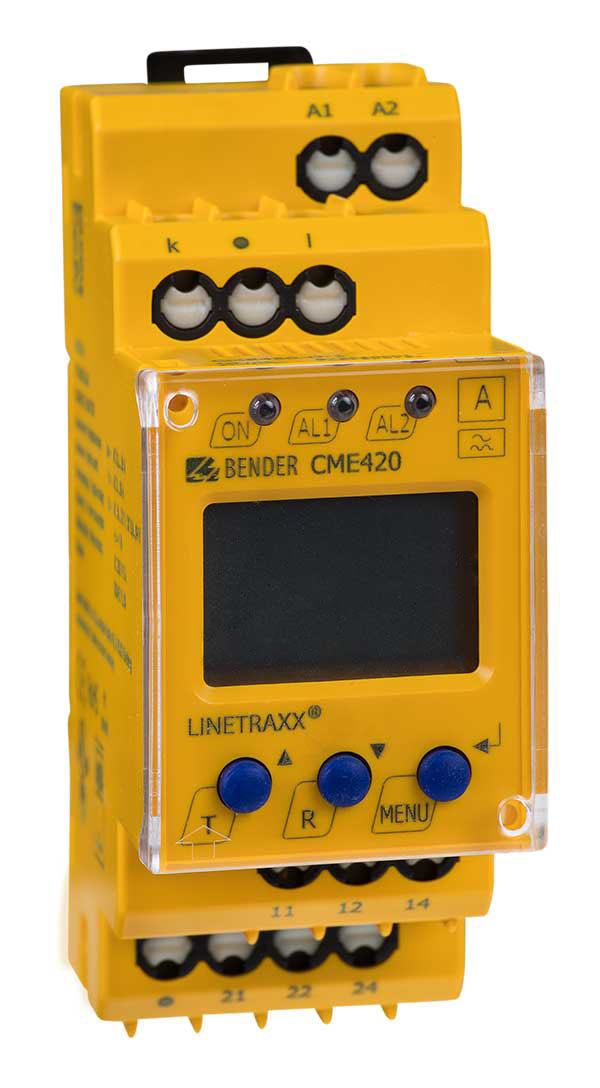

LINETRAXX® CME420
The CME420 series current relays monitor undercurrent and overcurrent in AC systems as well as the current between two threshold values (window discriminator function). The currents are measured as r.m.s. values (AC). The currently measured value is continuously shown on the LC display. The measured value required to trigger the alarm relay is stored. Due to adjustable delay times, installation-specific characteristics, such as device-specific making currents, short-time current changes etc. can be considered. Current measurement is possible either directly or indirectly via standard current transformers (x/5 A). External supply voltage is required.
The CME420 series current relays monitor undercurrent and overcurrent in AC systems as well as the current between two threshold values (window discriminator function). The currents are measured as r.m.s. values (AC). The currently measured value is continuously shown on the LC display. The measured value required to trigger the alarm relay is stored. Due to adjustable delay times, installation-specific characteristics, such as device-specific making currents, short-time current changes etc. can be considered. Current measurement is possible either directly or indirectly via standard current transformers (x/5 A). External supply voltage is required.
Features
- Undercurrent and overcurrent monitoring in AC systems 0.1…16 A
- Indirect current monitoring with standard current transformers x/5 A
- Transformation ratio n allows adaptation to all standard current transformers x/5 A
- Different monitoring functions selectable < I, > I or < I/> I
- Start-up delay, response delay, delay on release
- Adjustable switching hysteresis
- r.m.s. value measurement (AC)
- Digital measured value display via multi-functional LC display
- LEDs: Power On, Alarm 1, Alarm 2
- Measured value memory for operating value
- Continuous self monitoring
- Internal test/reset button
- Two separate alarm relays (one changeover contact each)
- N/C or N/O operation and fault memory behaviour selectable
- Password protection for device setting
- Sealable transparent cover
- Two-module enclosure (36 mm)
- Push-wire terminal (two terminals per connection)
- RoHS compliant
Applications
- Current consumption of motors, such as pumps, elevators, cranes
- Monitoring of lighting circuits, heating circuits, charging stations
- Monitoring of emergency lighting
- Monitoring of screw conveyors, e.g. in sewage plants
- Dust removal in wood working
LINETRAXX® CME420 Variant(s)
| Type | Supply voltage US* | Measurement | Display range | Response value | Art. No.** |
|---|---|---|---|---|---|
| CME420-D-1 | DC 9.6…94 V/ AC 16…72 V, 42…460 Hz | directly/ via current transformer x/5A | 0.1…16 A/ 5…999 A | 0.1…16 A x n | B73060001 B93060001 |
| CME420-D-2 | DC 70…300 V/ AC 70…300 V, 42…460 Hz | directly/ via current transformer x/5A | 0.1…16 A/ 5…999 A | 0.1…16 A x n | B73060002 B93060002 |
* absolute values
**(B7… = push-wire terminal / B9… = screw-type terminal)
