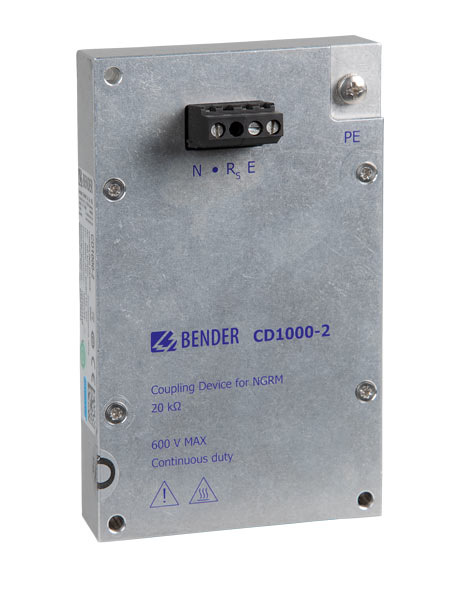

CD1000-2
The CD1000-2 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 1000 V (UNGR ≤ 600 V).
The maximum operating altitude is 5000 m above mean sea level.
The CD1000-2 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 1000 V (UNGR ≤ 600 V).
The maximum operating altitude is 5000 m above mean sea level.
Features
- Coupling device for NGRM
- Range of use up to AC 1000 V/DC 600 V system voltage
- Application up to 5000 m
Applications
- The coupling device is suitable for HRG applications up to AC 1000 V and/or DC 690 V.
CD1000-2 Variant(s)
| Type | Nominal system voltage Un | Art.-Nr. |
|---|---|---|
| CD1000-2 | Up to ULL =1000 V (UNGR = 600 V) | B98039053 |
Downloads for CD1000-2
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| CE Declarations of conformity | CDx | 76.0 KB | 2022/08/12 06:17:2212.08.2022 06:17:22 | ||
| Declarations of Conformity | UKCA - CDx | 121.1 KB | 2022/12/20 05:59:2520.12.2022 05:59:25 | ||
| Manuals | CD1000-2 | 447.6 KB | DE | 2022/12/02 11:07:2102.12.2022 11:07:21 | D00345 |
| Manuals | CD1000-2 | 476.7 KB | EN | 2022/12/02 11:07:4702.12.2022 11:07:47 | D00345 |
| Datasheets | CD1000-2 | 524.2 KB | DE | 2023/03/16 11:55:3116.03.2023 11:55:31 | D00345 |
| Datasheets | CD1000-2 | 521.5 KB | EN | 2023/03/16 11:56:2416.03.2023 11:56:24 | D00345 |
| Datasheets | CD1000-2 | 523.8 KB | FR | 2023/03/16 11:57:4016.03.2023 11:57:40 | D00345 |
| Datasheets | CD1000-2 | 524.8 KB | ES | 2023/03/16 11:57:0016.03.2023 11:57:00 | D00345 |
