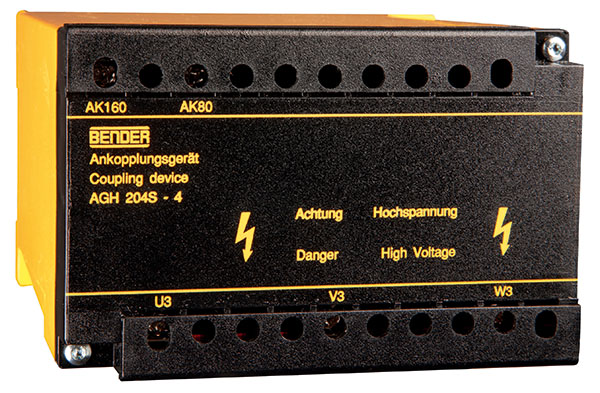

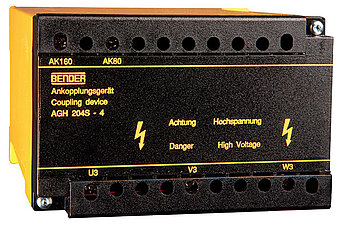

AGH204S-4
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For AC up to 1650 V
The coupling device AGH204S-4 is designed to extend the nominal voltage range of the ISOMETER® iso685 series to AC, 3(N)AC 0…1650/0…1300 V, 50…400 Hz. The coupling device is connected to the system to be monitored according to the wiring diagram and connected to the terminal AK of the ISOMETER® by means of terminal AK… .
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For AC up to 1650 V
The coupling device AGH204S-4 is designed to extend the nominal voltage range of the ISOMETER® iso685 series to AC, 3(N)AC 0…1650/0…1300 V, 50…400 Hz. The coupling device is connected to the system to be monitored according to the wiring diagram and connected to the terminal AK of the ISOMETER® by means of terminal AK… .
AGH204S-4 Variant(s)
| Type | Nominal system voltage Un | Art. No. |
|---|---|---|
| AGH204S-4 | AC 0…1650 V/0…1300 V | B914013 |
Downloads for AGH204S-4
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Manuals | AGH204S-4 | 1.5 MB | DE | 2021/03/12 07:42:5512.03.2021 07:42:55 | D00094 |
| Manuals | AGH204S-4 | 1.5 MB | EN | 2021/03/12 07:42:5512.03.2021 07:42:55 | D00094 |
| Datasheets | AGH204S-4 | 194.2 KB | ZH | 2019/05/13 10:31:3213.05.2019 10:31:32 | D00094 |
| Datasheets | AGH204S-4 | 375.2 KB | DE | 2019/09/10 10:16:1210.09.2019 10:16:12 | D00094 |
| Datasheets | AGH204S-4 | 340.6 KB | EN | 2019/09/10 10:16:2710.09.2019 10:16:27 | D00094 |
| Datasheets | AGH204S-4 | 338.5 KB | ES | 2019/09/10 10:16:4210.09.2019 10:16:42 | D00094 |
