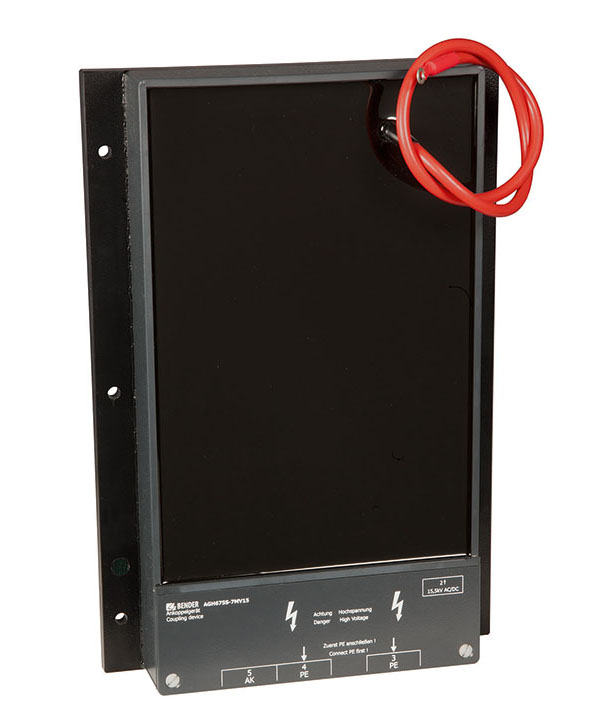

AGH675S-7/AGH675S-7MV15

AGH675S-7…

  • Increase of the ISOMETER® nominal voltage range
  • Application with ISOMETER® IRDH275BM-7
  • For medium-voltage applications up to AC/DC 7.2 kV (AGH675S-7)
  • For medium-voltage applications up to AC/DC 15.5 kV (AGH675S-7MV)

The coupling device AGH675S-7/AGH675S-7MV15 series is designed to extend the nominal voltage range of the ISOMETER® IRDH275BM-7. The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.

Downloads for AGH675S-7…

CategoryNameSizeLanguageTimestampD-/B-Number
CE Declarations of conformity AGH 145.4 KB 2022/08/12 06:17:2512.08.2022 06:17:25
Manuals AGH675S-7… 821.1 KB DE2019/05/13 10:31:4013.05.2019 10:31:40D00095
Manuals AGH675S-7… 821.1 KB EN2019/05/13 10:31:4013.05.2019 10:31:40D00095
Datasheets AGH675S-7 167.2 KB ZH2019/05/13 10:31:3213.05.2019 10:31:32D00095
Datasheets AGH675S-7… 263.8 KB DE2019/09/10 10:16:1210.09.2019 10:16:12D00095
Datasheets AGH675S-7… 220.6 KB EN2019/09/10 10:16:2810.09.2019 10:16:28D00095
Datasheets AGH675S-7… 221.4 KB ES2019/09/10 10:16:4310.09.2019 10:16:43D00095

AGH675S-7… Variants

TypeNominal system voltage UnCable lengthArt. No.
AGH675S-7-500AC/DC 0…7.2 kV, 0…460 Hz500mmB913060
AGH675S-7-2000AC/DC 0…7.2 kV, 0…460 Hz20000mmB913061
AGH675S-7MV15-500AC/DC 0…15.5 kV, 0…460 Hz500 mmB913058
