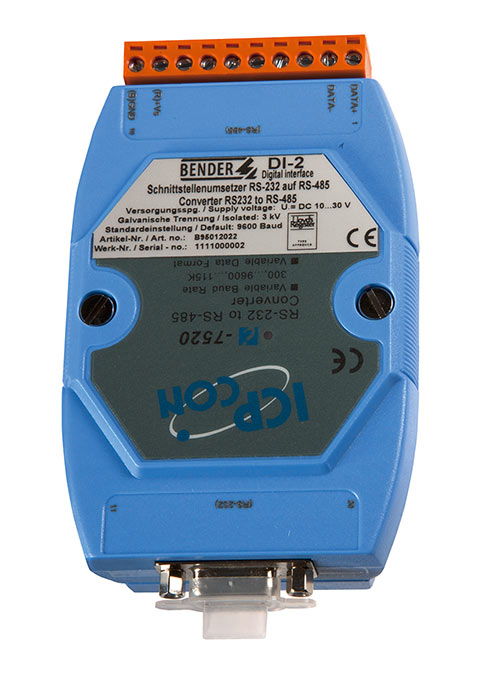

DI-2
- RS-232/RS-485 interface converter
The DI-2 converter is designed for the connection of personal computers and workstations utilising an RS-232 interface with Bender devices utilising an RS-485 interface. The hardware and software of the computers need not to be changed. A typical application is the connection of a personal computer to a BMS network.
- RS-232/RS-485 interface converter
The DI-2 converter is designed for the connection of personal computers and workstations utilising an RS-232 interface with Bender devices utilising an RS-485 interface. The hardware and software of the computers need not to be changed. A typical application is the connection of a personal computer to a BMS network.
Features
- Plastic enclosure for DIN rail mounting
- Electrical separation between the input and output circuit
- Supply voltage DC 10…30 V
Applications
- Conversion of RS-232 signals into RS-485 signals
- Parameterisation of alarm indicator and operator panels (MK800, MK2430) with RS-485 interface via PC with RS-232 interface using software
DI-2 Variant(s)
| Type | Supply voltage US* | Art. No. |
|---|---|---|
| DI-2 | DC 10…30 V | B95012022 |
*Absolute value
Downloads for DI-2
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| CE Declarations of conformity | DI-2 | 84.5 KB | 2022/08/12 06:17:2412.08.2022 06:17:24 | ||
| Manuals | DI-2 | 481.7 KB | DE | 2019/05/13 10:31:3013.05.2019 10:31:30 | D00102 |
| Manuals | DI-2 | 481.7 KB | EN | 2019/05/13 10:31:3013.05.2019 10:31:30 | D00102 |
| Datasheets | DI-2 | 294.1 KB | DE | 2019/05/13 10:31:3413.05.2019 10:31:34 | D00102 |
| Datasheets | DI-2 | 287.4 KB | EN | 2019/05/13 10:31:3513.05.2019 10:31:35 | D00102 |
| Datasheets | DI-2 | 352.5 KB | ES | 2019/05/13 10:31:3713.05.2019 10:31:37 | D00102 |
