UNIMET® 610ST

Test system for electrical equipment and machines

The UNIMET® 610ST stores the “first measured value” in accordance with the standard so that it can be used as a reference value for subsequent comparisons.

With the UNIMET® 610ST you can design all your tests yourself. A device protocol history can be easily created using the PC software supplied (UNIMET® Control Center).

Questions? Contact us!

Features

  • Easy operation and handling through Windows interface
  • Data exchange and storage via Control Center
  • Automatic, semi-automatic or manual test sequence
  • Data input via touch screen, keyboard or barcode
  • Visual inspection, electrical safety and functional test user-definable
  • Test sequences user-definable
  • Data storage > 10,000 data records
  • Filter function for fast data selection
  • Management of test dates
  • Multitenancy
  • Catalogue systems
  • Test probe with two switching contacts – for semi-automatic testing of parts not connected to PE
  • Compatible with the most common application programs, e. g. wave Facilities®, NOVA-FM and Fundamed

Interface diversity

  • RS-232 interface
  • USB port for printer, scanner, keyboard and USB stick
  • PS/2 port for scanner and keyboard
  • Network connection via Ethernet (optional)


Standard accessories

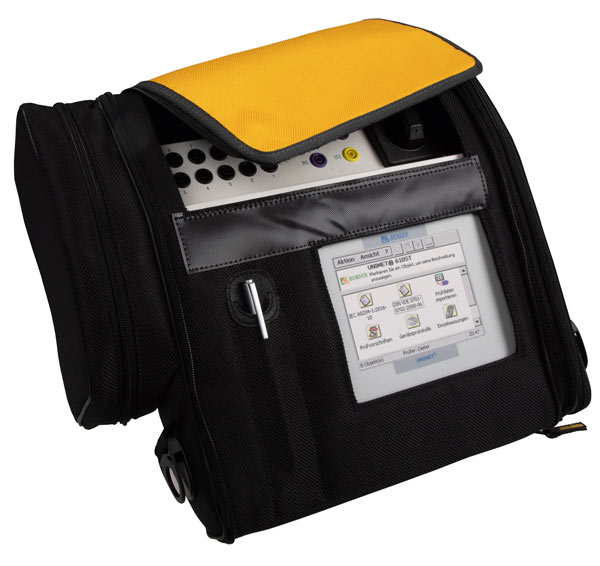

  • Robust protection and transport bag with universal carrying concept
  • Measuring lead with test probe
  • Measuring lead with test terminal
  • Null modem cable
  • VK 701-7 for testing non-heating appliances
  • Data management software UNIMET® Control Center


Service

  • Calibration interval 36 months
  • Warranty period 36 months
  • Free of charge hotline
  • Future-proof through software updates
  • Briefing seminars in Grünberg

Applications

Standard-conforming tests according to:

  • DIN EN 60204-11:2019-06
  • VDE 0113-11:2019-06
  • DIN VDE 0701-0702:2008-06


Standard-conforming measurements

  • Protective earth resistance
  • Insulation resistance
  • Protective earth conductor current
  • Equipment leakage current
  • Touch current
  • Direct method
  • Differential measurement
  • Alternative method

UNIMET® 610ST Variant(s)

DeviceArt. No.
UNIMET® 610ST (DE/DE)B96026020

Optional Accessories for UNIMET® 610ST

TypeDescriptionArt. Nr.
VK701-1Adapter Schuko/non-heating devicesB96020048
VK701-2Adapter CEE 16 A 5-poleB96020049
VK701-4Adapter CEE 32 A 5-poleB96020051
VK701-5Adapter CEE 63 A 5-poleB96020052
VK701-6Adapter SchukoB96020067
VK701-7Adapter non-heating devicesB96020066
VK701-8Adapter kit 16 A for DS32AB96020066
RS-232/RS-232 interface cableFor connecting the test system to a PC, 9-pin,
female-female (null-modem cable)
B96012012
USB2.0-RS232-ConverterConvertercable USB/RS-232 for UNIMET®B96020086
TP800Active test probe (with switch)B96020080
Test probeMeasuring lead, 3 m, with black test probeB928748
Cable 150cmMeasuring lead, 150 cm, 4-mm connectorB928703
Test terminalTest terminal blackB928741
Stylus PenTouchscreen penB928749
Barcode scanner PS/2for UNIMET® 610ST (PS/2 port)B96020082
Barcode scanner USBfor UNIMET® 610ST (USB port)B96020092
Scanner bag UNIMET®for Barcode scannerB96020102
Flex keyboardfor UNIMET® 610ST (USB port)B96020093
TP16Cable drum with measuring cable, cable length 16 mB96020054
DS32AThree-phase adapter
for testing three-phase devices during operation
(acc. DIN EN 62353, DIN VDE 0751-1,DIN VDE 0701-0702)
B96020098

Downloads for UNIMET® 610ST

NameCategorySizeLanguageTimestampD-/B-Number
UNIMET® 610ST - 810ST CE Declarations of conformity 88.7 KB 2022/11/1010.11.2022
Verpackungsinhalt UNIMET® 610ST Manuals 859.3 KB DE2019/07/1212.07.2019D00380
Contents of packaging UNIMET® 610ST Manuals 859.3 KB EN2019/07/1212.07.2019D00380
UNIMET® 610ST Manuals 4.4 MB DE2019/07/1212.07.2019D00380
UNIMET® 610ST Flyer 339.4 KB DE2020/01/0606.01.2020D00380
UNIMET® 610ST Product Brochures 490.4 KB DE2020/03/2525.03.2020D00380
UNIMET® 610ST Product Brochures 489.5 KB EN2020/03/2525.03.2020D00380
