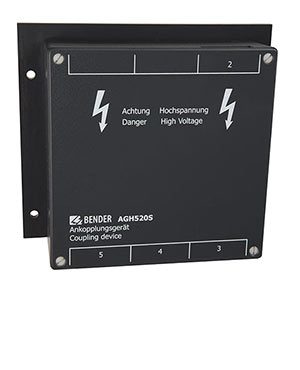

AGH520S

  • Increase of the ISOMETER® nominal voltage range
  • Used with ISOMETER® of the iso685 series
  • For medium-voltage applications up to AC 7.2 kV

The coupling device AGH520S is designed to extend the nominal voltage range of the ISOMETER® iso685 series to (3)AC 0…7200 V, 50…400 Hz. The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.

Questions? Contact us!

AGH520S
AGH520S
  • Increase of the ISOMETER® nominal voltage range
  • Used with ISOMETER® of the iso685 series
  • For medium-voltage applications up to AC 7.2 kV

The coupling device AGH520S is designed to extend the nominal voltage range of the ISOMETER® iso685 series to (3)AC 0…7200 V, 50…400 Hz. The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.

Questions? Contact us!

AGH520S Variant(s)

TypeNominal system voltage UnArt. No.
AGH520S3(N)AC 0…7200 VB913033

Downloads for AGH520S

NameCategorySizeLanguageTimestampD-/B-Number
AGH CE Declarations of conformity 143.8 KB 2023/11/2222.11.2023
UKCA - AGH Declarations of Conformity 122.7 KB 2023/11/2222.11.2023
AGH520S-4 Manuals 1.6 MB DE2023/11/2828.11.2023D00073
AGH520S-4 Manuals 1.6 MB EN2023/11/2828.11.2023D00073
AGH520S Manuals 104.7 KB FR2019/05/1313.05.2019D00073
AGH520S Datasheets 178.3 KB ZH2019/05/1313.05.2019D00073
AGH520S Datasheets 336.2 KB DE2022/07/2121.07.2022D00073
AGH520S Datasheets 333.6 KB EN2022/07/2121.07.2022D00073
AGH520S Datasheets 336.5 KB ES2022/07/2121.07.2022D00073
